Avocent Emerge Wireless Media Streamer Receiver Unit



Recommended replacement: Wireless KVM | Wireless Extenders
Alternative options: Contact Us

The Avocent EWMS1000R is the Receiver unit for the Emerge Wireless Media Streamer system.

The Avocent Emerge EWMS1000 wireless media streamer broadcasts standard definition, full-motion, streaming video from an analog video source to multiple display devices up to 1000 feet line-of-sight (LOS). The Emerge EWMS1000 makes installations simple and more cost-effective by eliminating the need for long cable runs and expensive PCs at each display.

This wireless media streamer is a simple hardware solution that requires minimal setup time. On the resource side, the transmitter connects directly to a computer, DVD player, VCR, and other A/V source devices. At the remote end, the receiver connects directly to the display device which could be a plasma screen, projector or monitor. The EWMS1000 media streamer can be used for point-to-point video extension or for point-to-multipoint broadcast applications; the only difference is the number of receivers.

The Emerge EWMS1000 wireless media streamer converts any supported video source to any video output. The EWMS1000 automatically scales to a consistent 640 x 480 resolution. It requires no special application or operating system software.

Avocent EWMS1000R Backside
Avocent EWMS1000R Backside

Avocent Wireless Media Streamer Features:

  • Wireless Video - Outputs 30 frames per second full motion video (MPEG2D1) at up to 640 x 480 resolution.
  • Multipoint and Point-to-Point Transmission - By pushing a button on each device, the operator can train detected receivers to the transmitter.
  • Plug and Play - Quick, simple installation. No software to download or controls required.
  • Multiple Input/Output Formats - Built-in support for multiple input/output formats including Component, S-Video, Composite Video, VGA computer video (640 x 480), RS-232 control, and stereo audio.
  • Auto Input/Output Detection - The wireless transmitter switches to an active input device and automatically converts and routes video and audio signals to connected displays.
  • Optional Antenna - The HGA51G-DIR30 directional antenna is available for extended distance requirements.
  • Built-in Signal Strength Monitor - Identifies performance-optimized mounting location automatically without special metering equipment.
  • 802.11a Radio Standard - Operates on the least-used standard WLAN frequencies for higher QoS and interference-free connectivity.
  • Proprietary Communications Protocol - Proprietary packet protocol offers security and high bandwidth for challenging installations.
  • AES Encryption - Built-in Advanced Encryption Standard (AES) for secure wireless connectivity
  • Multi-Display RS-232 Interface - Setup, display controls and monitoring the health of up to 8 attached display devices from a single Emerge EWMS1000 transmitter.

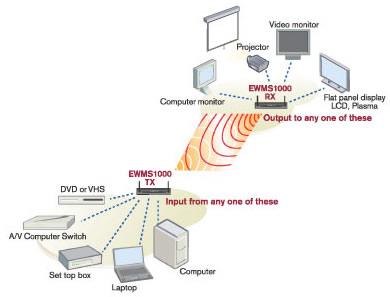

Avocent Wireless Media Streamer Point-to-Point Application
Avocent Wireless Media Streamer Point-to-Point Application

Emerge EWMS1000R Specifications:

Height 1.25 in. (32 mm.)
Width 4 in. (102 mm.)
Depth 6.5 in. (165 mm.)
Weight 2 lbs. (.91 Kg)
Enclosure Metal with 75mm vesa mounts
Operating Temperature 32°F (0°C) to 104°F (40°C)
Supply External, 9 volt @ 1amp AC to DC universal
Rated Power 4 watts
Frequency 5.2 GHz to 5.8 GHz
Socket Connector Mini D-Sub 15 pin
Computer Video Signals Mini D-Sub 15 pin (socket connector)
Output Resolution VGA (640 x 480), Up to 60 Hz Vertical Refresh
Video Signals Component (Pr, Pb, Py), S-Video, Composite Video, VGA Computer Video 480i @ 30 FPS
Audio Stereo mini jack
Control RS-232 D-Sub 9 pin
Distance 150 feet (46 m) through walls. Up to 1000 feet (305 m) line-of-sight with optional directional antenna
Compression MPEG2
Antennas Two 2dB omni-directional (included). 8dB directional antennas (optional)
Antenna Distance Configuration Line-of-Sight Distance Range
2 omni-directional 300 feet 300 feet
2 directional 500 feet 750 feet
1 directional 1000 feet 1250 feet
2 directional 1500 feet 2000 feet
Approvals UL/cUL, CE, FCC Class A, ICES-003 Class A, EN55022 Class A, EN61000-3-2, EN61000-3-3, EN55024, EN 301-489-1, EN 301-893

* Input resolution will be scaled down to 640 x 480 for transmission.
