Gefen 2-Port DVI ADC KVM Switch

EXT-ADC-241

$449.00

Discontinued
For upgrade or replacement options: Contact Us

The ADC Switcher makes it effortless to work on two computers from one workstation. It easily and reliably accesses each computer using just one ADC flat panel display and one USB keyboard/mouse. It eliminates the need for a separate monitor for each computer and combines both without networking. High definition video, USB keyboard/mouse control and audio are switched for each computer.

How it Works:
Simply plug the DVI, USB and audio cables into the ADC switcher then connect the cables to the computers you want to control. The ADC flat panel display is connected to the Switcher's output. You then press the "select" button to switch between computers, or you can switch remotely using the RMT-2 remote control. You can also choose between several setups: a desktop Mac G4 with ADC connection; a PowerBook G4 laptop; or a PC computer with DVI connection connected to ADC flat panel display.

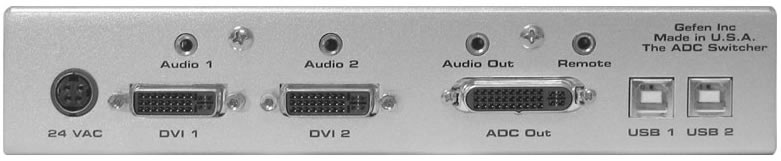

Gefen ADC 241 Switch

Features:

  • Saves money on hardware costs
  • Saves space on your desktop
  • Save time and increase your productivity
  • Maintains highest resolution video with no loss of quality
  • Use either PC or Mac with USB keyboard/mouse
  • Switches easily between any two computers
  • Remote control option
  • Support ADC based flat panel displays
  • Rackmountable

Specifications

  • Video Amplifier Bandwidth: 1.65 GHz
  • Input Video: DVI
  • Output Video: ADC
  • Single Link Range: 1920x1200
  • Vertical Frequency Range: 60 Hz
  • DVI Input Connectors: Type DVI-I
  • ADC Output Connectors: ADC
  • USB Output Connectors: Type ”A”
  • Power Consumption: 18 Watts (max.)
  • Power Supply: 24v-28V 72W
  • Dimensions: 8"W x 1.75"H x 4"D
  • Rackmountable: 1 Rack Space
  • Shipping Weight: 8 lbs

Package Includes:

  • the ADC Switcher
  • One 24v universal power supply
  • Two 6ft ADC or DVI cables
  • Two 6ft USB cables
  • Two Audio cables
