Gefen Audio Extender Receiver



For upgrade or replacement options: Contact Us

The Gefen EXT-AUD-1000-R is an Audio Extender Receiver which extends your Audio up to 1000 feet from your computer.

The Audio Extender sender (sold separately) unit sits next to your audio source. Stereo cables supplied with the Audio Extender package connects your audio source to the sender. The receiver unit connects to your speakers or audio output device. One CAT-5 cable connects the sender and the receiver to each other - up to 1000 feet away.

Gefen EXT-AUD-1000-R Features:

  • One CAT-5e cable used for extension
  • Installs in seconds

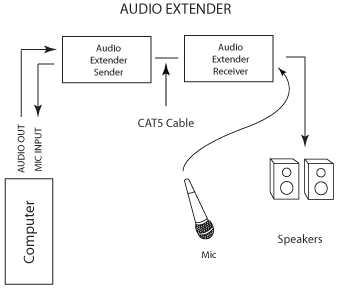

Gefen Audio Extender Receiver Application Diagram

Gefen Audio Extender Receiver Application Diagram

Package Includes:

  • Audio Extender R Receive Unit

Gefen EXT-AUD-1000-R Specifications:

Height 1 in. (3 cm.)
Width 1 in. (3 cm.)
Depth  4 in. (10 cm.)
Shipping Weight 3 lbs. (1 kg.)
Supply 5 VDC (External)
Consumption 5 watts (max)
Sample Rate 5 kHz (min) - 48 kHz (max)
Frequency Response 20Hz - 20kHz
Interfaces 1 x audio - line-out/headphones - mini-phone stereo 3.5 mm - 1
