Gefen 1:16 Audio Distribution Amplifier



For upgrade or replacement options: Contact Us

The Gefen EXT-AUD-14816 is a 1:16 Audio Distribution Amplifier which enables you to split your analog and distributes up to 16 different devices at the same time. Each device can be up to 1000 feet from your computer.

You simply connect your analog audio source to the 1:16 Audio Distribution Amplifier's sender using the supplied stereo cable. Up to 16 receivers (one per channel) connect to your speakers or audio output devices. One CAT-5 cable per receiver connects the sender to the individual receivers in multiple locations at distances of up to 1000 feet away.

Gefen EXT-AUD-14816 Features:

  • Distributes audio to multiple locations from the same audio source
  • Uses industry standard CAT-5e cables to extend audio
  • Rack mountable

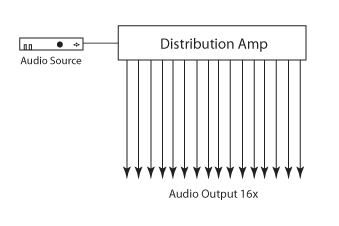

Gefen 1:16 Audio Distribution Amplifier Application Diagram

Gefen 1:16 Audio Distribution Amplifier Application Diagram

Package Includes:

  • 1:16 Audio Distribution Amplifier Sender Unit
  • 6 foot audio cable
  • 5VDC external power supply
  • Rack Ears

NOTE: Receiver is sold separately.

Gefen EXT-AUD-14816 Specifications:

Height 1.75 in. (4.40 cm.)
Width 17 in. (43 cm.)
Depth 4.6 in. (11.7cm.)
Weight 9 lbs. (4 kg.)
Supply 5V DC
Consumption 10 watts (max)
Sample Rate 5 kHz (min) - 48 kHz (max)
Frequency Response 20hz - 20khz
Interfaces mini-phone stereo 3.5 mm
