Gefen CAT5 6000 USB KVM Extender

EXT-CAT5-6000

$1,295.00

Discontinued
Recommended replacement: Adder X50-MS2
Alternative options: Contact Us

The Gefen EXT-CAT5-6000 extends two monitors, USB, Serial (RS232) and Audio with 3x CAT5 cables up to 330 feet away from your computers.

Gefen EXT-CAT5-6000 Receiver & Sender Backside


How the Gefen EXT-CAT5-6000 works:

The EXT-CAT5-6000 sender unit sits next to your computer. Cables supplied with the EXT-CAT5-6000 connect your CPU to the sender. The EXT-CAT5-6000 receiver unit sits next to the monitors, keyboard and mouse - up to 330 feet away. Two monitors, keyboard and mouse plug into the back of the receiver. CAT-5 extension cables up to 330 feet connect the sender and the receiver to each other.

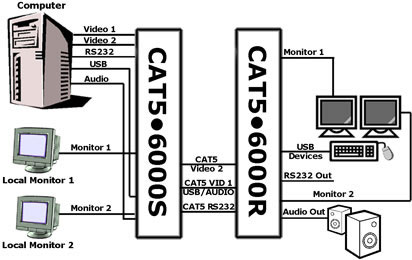

Gefen EXT-CAT5-6000 Diagram

Gefen EXT-CAT5-6000 Diagram

Gefen EXT-CAT5-6000 Features:

  • Extends two monitors, USB and audio using category 5 cables
  • Extends RS232 using category 5 cable
  • Saves money on cable and hardware costs
  • Saves space on your desktop
  • Convenient, flexible and expandable
  • Eliminates computer noise where you work
  • Maintains 1920 x 1200 x 75 resolution video
  • Support any type of CRT or LCD analog monitor
  • USB supports high powered 4 port HUB
  • Ideal For Mac or PC computers using USB or RS232 peripherals
  • Extends audio for multimedia applications
  • Rack mountable

Gefen EXT-CAT5-6000 Package Includes:

  • EXT-CAT5-6000S Sender
  • EXT-CAT5-6000R Receiver
  • Two 6ft VGA cable
  • One 6ft USB cable
  • One 6ft Audio cable
  • Two 5V Transformers
  • Rack Ears

Gefen EXT-CAT5-6000 Specifications:

Mechanical Sender Receiver
Height 1.75 in. (4.44 cm.) 1.75 in. (4.44 cm.)
Width 16 in. (40.64 cm.) 8 in. (20.32 cm.)
Depth 4 in. (10.16cm.) 4 in. (10.16cm.)
Shipping weight 11 lbs. (4.98 kg.)
Power
Supply 5DC (External)
Consumption 15 Watts (max.)
Connectors
Video In HD-15
Video out HD-15
Link Connector RJ-45
USB Input USB - "A" Connector
USB Device Input  USB - "B" Connector
Bandwidth
Video Amplifier Bandwidth 350 MHz
Actual Bandwidth 120 MHz
Signal
Input Video Signal 1.2 Volts p-p
Input Sync Signal 5 Volts p-p (TTL)
Frequency Range
Horizontal Frequency Range 15-70 KHz
Vertical Frequency Range 30 - 170 Hz
