Gefen CAT5 7000 KVM Extender

EXT-CAT5-7000

$1,495.00

Discontinued
Recommended replacement: Adder X50-MS2
Alternative options: Contact Us

The Gefen EXT-CAT5-7000 is built to extend two analog monitors, one USB-equipped computer peripheral (such as a scanner or printer), one PS/2-based keyboard/mouse, two audio outputs (for two sets of speakers, for example), one audio input (for microphone or similar audio device) and one RS-232 device (like a touchscreen). The EXT-CAT5-7000 can support a 4-port USB hub in the case that multiple USB-based computer devices need to be operated at the extended location.

Designed to offer unprecedented flexibility with computer peripherals, EXT-CAT5-7000 works with all CRT and LCD computer monitors, USB peripherals, PS/2 keyboards and mice, RS-232 and audio devices (Mac or PC).

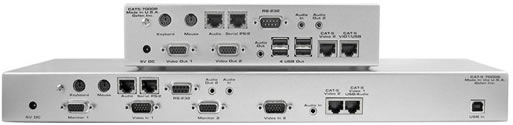

Gefen EXT-Cat5-7000 Backside

Gefen EXT-CAT5-7000 Receiver & Sender Backside

How the Gefen EXT-CAT5-7000 works:

The EXT-CAT5-7000 uses a sender and receiver methodology to transmit signals from the computer to the workstation. The sender unit connects to the computer using the cables provided. The receiver unit connects to the two monitors, keyboard/mouse, USB, RS232 and audio devices up to 330-feet away. Multiple CAT5 extension cables (up to 4), sold separately, connect the sender to the receiver and thus the computer to the extended workstation. Both the sender and the receiver units must be connected to a power supply. When fully powered and operational, the units extend all signals efficiently and reliably.

* NOTE: If you use a patch panel or patchcords both the cables and the patch have to be shielded.

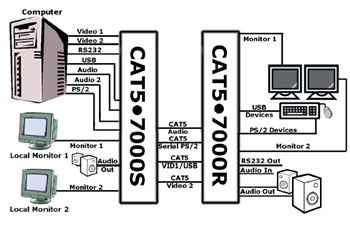

Gefen EXT-CAT5-7000 Diagram

Gefen EXT-CAT5-7000 Diagram

Gefen EXT-CAT5-7000 Features:

  • Saves space: no need to make room for large or small CPUs at the workstation when the CAT5-7000 provides convenient and flexible ways to isolate the CPU and expand the workstation
  • Increased productivity: a remote computer workstation allows computer data to be input and accessed on-site in real-time
  • Improved aesthetics: the CAT5-7000 eliminates computer noise where you work
  • Flexible functionality: the CAT5-7000 maintains high resolution video, support two types of analog monitors (CRT and LCD), DDC control signals, USB and RS-232 peripherals
  • High Performance Technology: the CAT5-7000 uses Extreme USB technology for USB extension, ensuring control signals operate optimally and will support high-powered 4-port USB hubs, if needed
  • Multimedia Enabled: two audio outputs are extended for multimedia applications
  • Ease of use: the CAT5-7000 installs in seconds and are rack-mountable

Gefen EXT-CAT5-7000 Package Includes:

  • Sender Unit
  • Receiver Unit
  • Two 6ft VGA cables
  • One 6ft USB cable
  • Two 6ft PS/2 cables
  • One 6ft Audio cable
  • Two 5V Transformers
  • Rack Ears

Gefen EXT-CAT5-7000 Specifications:

Mechanical
Height 1.75 in. (4.44 cm.)
Width 16 in. (40.64 cm.)
Depth 4 in. (10.16 cm.)
Shipping weight 14 lbs. (6.35 kg.)
Power
Supply 16 VAC 2A
Consumption 15 Watts (max.)
Connectors
Video In HD-15
Video out HD-15
Link Connector RJ-45
ADB Keyboard Connectors 4 Pin MiniDin
PS/2 Keyboard Connectors 6 Pin MiniDin
USB Input USB - "A" Connector
USB Device Input  USB - "B" Connector
Bandwidth
Video Amplifier Bandwidth 350 MHz
Actual Bandwidth 120 MHz
Signal
Input Video Signal 1.2 Volts p-p
Input Sync Signal 5 Volts p-p (TTL)
Frequency Range
Horizontal Frequency Range 15-70 KHz
Vertical Frequency Range 30 - 170 Hz
Focus/Brightness Control 25 to 450 FT
