Gefen CAT5 7500 USB Dual KVM Extender

EXT-CAT5-7500

$1,595.00

Discontinued
Recommended replacement: Adder X50-MS2
Alternative options: Contact Us

The Gefen EXT-CAT5-7500 is built to extend two analog monitors, one USB-equipped computer peripheral (such as a scanner or printer), one PS/2-based keyboard/mouse, two audio outputs (for two sets of speakers, for example), one audio input (for microphone or similar audio device) and one RS-232 device (like a touchscreen). This unit supports a 4-port USB hub in the case that multiple USB-based computer devices need to be operated at the extended location.

The EXT-CAT5-7500 sends video separately using its own CAT5 cable. This means it requires an additional CAT5 extension cable but it also enables video refinement capabilities for the extended monitors. Both video signals can also be extended a few hundred feet further (up to 600-feet) if needed. The CAT5-7500 is the solution for those who need the industrious CAT5-7000 and have more discerning video requirements.   The EXT-CAT5-7500 is designed to offer unprecedented flexibility with computer peripherals, both versions work with all CRT and LCD computer monitors, USB peripherals, PS/2 keyboards and mice, RS-232 and audio devices (Mac or PC).

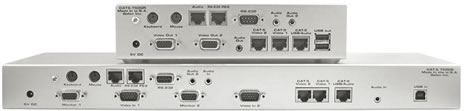

Gefen EXT-Cat5-7500 Backside

Gefen EXT-CAT5-7500 Receiver & Sender Backside

How it Gefen EXT-CAT5-7500 works:

The EXT- CAT5-7500 uses a sender and receiver methodology to transmit signals from the computer to the workstation. The sender unit connects to the computer using the cables provided. The receiver unit connects to the two monitors, keyboard/mouse, USB, RS232 and audio devices up to 330-feet away. Multiple CAT5 extension cables (up to 5), sold separately, connect the sender to the receiver and thus the computer to the extended workstation. Both the sender and the receiver units must be connected to a power supply. When fully powered and operational, the units extend all signals efficiently and reliably.

* NOTE: If you use a patch panel or patchcords both the cables and the patch have to be shielded.

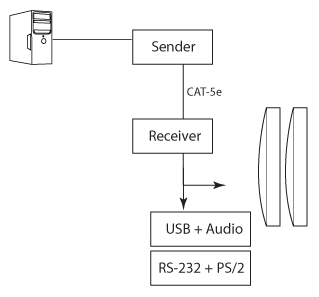

Gefen USB Dual KVM Extender Wiring Diagram

Gefen USB Dual KVM Extender Wiring Diagram

Gefen EXT-CAT5-7500 Features:

  • Saves space: no need to make room for large or small CPUs at the workstation when the CAT5-7500 provides convenient and flexible ways to isolate the CPU and expand the workstation
  • Increased productivity: a remote computer workstation allows computer data to be input and accessed on-site in real-time
  • Improved aesthetics: the CAT5-7500 eliminates computer noise where you work
  • Flexible functionality: the CAT5-7500 maintains high resolution video, support two types of analog monitors (CRT and LCD), DDC control signals, USB and RS-232 peripherals
  • High Performance Technology: the CAT5-7500 uses Extreme USB technology for USB extension, ensuring control signals operate optimally and will support high-powered 4-port USB hubs, if needed
  • Multimedia Enabled: two audio outputs are extended for multimedia applications
  • Ease of use: the CAT5-7500 installs in seconds and are rack-mountable

Gefen EXT-CAT5-7500 Package Includes:

  • Sender Unit
  • Receiver Unit
  • Two 6ft VGA cables
  • One 6ft USB cable
  • Two 6ft PS/2 cables
  • One 6ft Audio cable
  • Two 5V Transformers
  • Rack Ears

Gefen EXT-CAT5-7500 Specifications:

Mechanical Sender Receiver
Height 1.7 in. (4.31 cm.) 1.75 in. (4.44 cm.)
Width 17 in. (43.18 cm.) 8.4 in. (21.33 cm.)
Depth 4.6 in. (11.68 cm.) 4.6 in. (11.68 cm.)
Shipping weight 9 lbs. (4.08 kg.)
Power
Supply 5VDC (external)
Consumption 1.45 Amps
Connectors
Video In HD-15
Video out HD-15
Link Connector RJ-45
PS/2 Keyboard Connectors 8 Pin MiniDin
PS/2 Mouse Connectors 8 Pin MiniDin
USB - "A" Connector USB Input
USB - "B" Connector USB Device Input
Bandwidth
Video Amplifier Bandwidth 350 MHz
Actual Bandwidth 120 MHz
Signal
Input Video Signal 1.2 Volts p-p
Focus/Brightness Control 25 to 450 ft.
