Gefen CAT5 9000HD-NI Extender

EXT-CAT5-9000HD-NI

$799.00

Discontinued
Recommended replacement: Adder XD150
Alternative options: Contact Us

The Gefen EXT-CAT5-9000HD-NI sends your digital video display plus accompanying peripherals away from your computer so you can operate in silence or locate your CPU in a safe and secure location.  Industry standard CAT-5e cables are used to connect your computer to the remote devices and distances up to 150 feet are easily achieved.

The EXT-CAT5-9000HD-NI  supports one DVI digital display , PS/2 keyboard/mouse, RS-232 for serial communication systems and two audio devices.

How the EXT-CAT5-9000HD-NI works:

The EXT-CAT5-9000HD-NI sender connects to your computer with the supplied cables. The receiver connects to your DVI displays and peripherals - up to 150 feet away. Multiple CAT-5 cables connect the sender (computer) and receiver (peripherals) to each other.  The EXT-CAT5-9000HD-NI is HDCP compliant.

*The EXT-CAT5-9000HD-NI does not have USB core boards installed, so USB will not function, but USB cores can be add later for future upgrades.

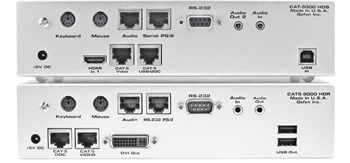

Gefen EXT-CAT5-9000HD-NI Backside

Gefen EXT-CAT5-9000HD Backside

Gefen EXT-CAT5-9000HD-NI Features:

  • Extends any DVI (Digital Visual Interface) compliant devices up to 150 feet from the computer
  • Also extends PS/2, RS232, and audio devices up to 150 feet from the computer
  • Uses four CAT-5e cables
  • Uses CAT-5e cable for DDC and control signals
  • Supports VESA Standard resolutions and HDTV resolution
  • Supports DDWG standard for DVI compliant monitors
  • Video is transmitted digitally for zero signal loss
  • HDCP Compliant
  • Installs in minutes

Gefen EXT-CAT5-9000HD-NI Package Includes:

  • EXT-CAT5-9000HD-NI-S
  • EXT-CAT5-9000HD-NI-R
  • One 6 foot DVI to HDMI Cable
  • Two 6 foot PS/2 Cables
  • One 6 foot Audio cable
  • One 5V Power Supply
  • User's Manual

Gefen EXT-CAT5-9000HD-NI Specifications:

Mechanical
Height 1.75 in. (4.45 cm.)
Width 8.4 in. (21.34 cm.)
Depth 4.4 in. (11.18 cm.)
Shipping Weight 7 lbs. (3.18 kg.)
Connectors
Link Connector RJ-45
PS/2 Keyboard 6 Pin MiniDin
PS/2 Mouse 6 Pin MiniDin
RS232 DB-9
Power
Supply 5V DC
Consumption 20 Watts (max)
Signal
Input Video 1.2 volts p-p
Input DDC 5 volts p-p (TTL)
Video Amplifier Bandwidth 1.65 Gbps
Single Link Range 1080P/1920 x 1200
Video Input HDMI type A 19 pin female
Video Output DVI-I (29 pin) female (Digital Only)
