Gefen CAT5 9000 HD DVI USB KVM Extender
EXT-CAT5-9000HD
The Gefen EXT-CAT5-9000HD sends your digital video display plus accompanying peripherals away from your computer so you can operate in silence or locate your CPU in a safe and secure location. Industry standard CAT-5e cables are used to connect your computer to the remote devices and distances up to 150 feet are easily achieved. The EXT-CAT5-9000HD supports one DVI digital display , USB or PS/2 keyboard/mouse, RS-232 for serial communication systems and two audio devices. The EXT-CAT5-9000HD is HDCP compliant.
How the Gefen EXT-CAT5-9000HD works:
The EXT-CAT5-9000HD sender connects to your computer with the supplied cables. The receiver connects to your DVI displays and peripherals - up to 150 feet away. Multiple CAT-5 cables connect the sender (computer) and receiver (peripherals) to each other.
*Note: For distances over 100 ft. shielded CAT-5 cable for video is recommended for optimal video quality. The DDC CAT-5 cable does not need to be shielded.

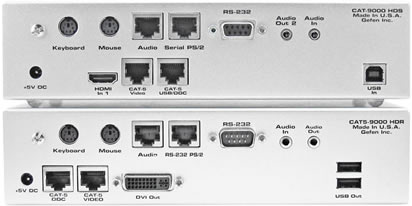

Gefen EXT-CAT5-9000HD Sender & Receiver Backside
Gefen EXT-CAT5-9000HD Features:
- Extends any DVI (Digital Visual Interface) compliant devices up to 150 feet from the computer
- Also extends USB 1.1, PS/2, RS232, and audio devices up to 150 feet from the computer
- Uses four CAT-5e cables
- Uses CAT-5e cable for DDC and control signals
- Supports VESA Standard resolutions and HDTV resolution
- Supports DDWG standard for DVI compliant monitors
- Video is transmitted digitally for zero signal loss
- HDCP Compliant
- Installs in minutes
Gefen EXT-CAT5-9000HD Package Includes:
- the EXT-CAT5-9000HD-S
- the EXT-CAT5-9000HD-R
- One 6 foot DVI to HDMI Cable
- Two 6 foot PS/2 Cables
- One 6 foot USB Cable
- One 6 foot Audio cable
- One 5V Power Supply
- User's Manual
Gefen EXT-CAT5-9000HD Specifications:
| Mechanical | |
| Height | 1.75 in. (4.44 cm.) |
| Width | 8.4 in. (21.33 cm.) |
| Depth | 4.4 in. (11.17 cm.) |
| Shipping weight | 7 lbs. (3.17 kg.) |
| Power | |
| Supply | 5V DC |
| Consumption | 20 watts (max) |
| Connectors | |
| Video Input | HDMI type A 19 pin female |
| Video Output | DVI-I (29 pin) female (Digital Only) |
| Link Connector | RJ-45 |
| PS/2 Keyboard Connector | 6 Pin MiniDin |
| PS/2 Mouse Connector | 6 Pin MiniDin |
| RS232 Connector | DB-9 |
| USB Input | USB type "B" Connector |
| USB Output | Two USB type "A" connectors |
| Bandwidth | |
| Video Amplifier Bandwidth | 1.65 Gbps |
| Signal | |
| Input Video Signal | 1.2 Volts p-p |
| Input Sync Signal | 5 Volts p-p (TTL) |
| Single Link Range | 1080P/1920 x 1200 |
