Gefen 1:8 Component CAT5 Distribution Sender

EXT-COMP-CAT5-148S

$699.00

Discontinued
For upgrade or replacement options: Contact Us

The Gefen EXT-COMP-CAT5-148S is a 1:8 Component CAT5 Distribution Sender which distributes one source to eight displays. The 1:8 Component CAT5 Distribution Amplifier has eight RJ-45 output connectors and one Component input. The products RJ-45 connectors can be connected to up to eight Component CAT5 Distribution Amplifier Receivers using industry standard CAT5/6 cables. The receivers can be placed up to 330 feet away from the transmitter.

Simply connect your Component video source to the 1:8 Component CAT5 Distribution Amplifier's input using the supplied Component cable. Then connect up to eight Component displays to the Component CAT5 receivers. Plug in the power supply to the 1:8 Component CAT5 Distribution Amplifier and the Receivers will get draw power from the main unit. Note: Component output 1 is the primary connection whose EDID will be used for displays two through eight. The Component displays that are attached to ports two through eight on the 1:8 Component CAT5 Distribution Amplifier MUST have the same native resolution in order to get a picture. The 1:8 Component CAT5 Distribution Amplifier will extend a Component signal OR a composite video w/ L+R analog audio. For this to work, you will need to connect your composite video w/ L+R analog audio to the red, green, and blue inputs making sure that you keep the same color order of cabling on the output ports.

Note: Power supply connects to sender unit. Receiver is powered through the sender (Receivers not included).

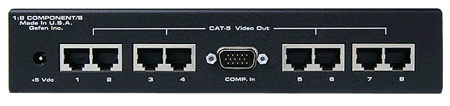

Gefen 1:8 Component CAT5 Sender Backview

Gefen 1:8 Component CAT5 Sender Backview

Gefen EXT-COMP-CAT5-148S Features:

  • Easily distribute one source to eight simultaneous displays
  • Extends video signals up to 330 feet over CAT-5e
  • Supports component video distribution
  • Maintains 1080p resolution video
  • Allows eight monitors to be connected to the same video source at the same time

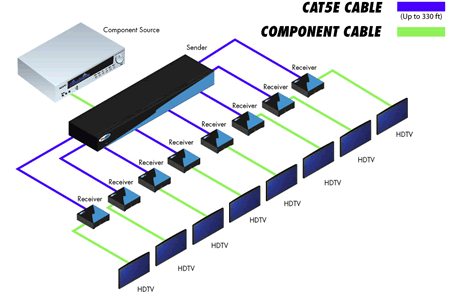

Gefen 1:8 Component CAT5 Sender Application Diagram

Gefen 1:8 Component CAT5 Sender Application Diagram

Package Includes:

  • 1:8 Component CAT5 Distribution Amplifier
  • 6 foot VGA to Component cable
  • One 5V external power supply

Gefen EXT-COMP-CAT5-148S Specifications:

Mechanical
Height 1.75 in. (4.4 cm.)
Width 8.5 in. (21.6 cm.)
Depth 4.5 in. (11.4 cm.)
Input Signal
Input Video Signal 1.2 volts p-p
Input Sync Signal 5 volts p-p (TTL)
Power
Supply 5 VDC (External)
Consumption 30 Watts (max.)
Frequency Range
Horizontal 15-70 KHz
Vertical 30-170 Hz
Video
Video In HD-15
Video Out 3 RCA Component
Link Connector RJ-45 shielded
