Gefen 1:2 Component Audio over CAT5 Extender

EXT-COMPAUD-CAT5-142

$499.00

Discontinued
For upgrade or replacement options: Contact Us

The Gefen EXT-COMPAUD-CAT5-142 is a 1:2 Component Audio over CAT5 which extends and duplicates your audio and component video signals at distances of up to 1000 feet away. Remote AV signals are received from the 1:2 Component Audio over CAT5 Sender unit, via industry-standard CAT5 network cables.  This Gefen Extender system will extend Analog Component as well as Analog Audio or Digital Audio via S/PDIF or TOSlink and provide two full sets of AV signal output on the receiving end. Audio is transmitted digitally over the CAT-5 cable and both the analog and digital audio outputs are active on the receiver side.

How It Works
The 1:2 Component Audio CAT5 Distribution Amplifier Sender unit is placed at the source location. A standard CAT5 cable is run from the 1:2 Component Audio over CAT5 Sender to the 1:2 Component Audio over CAT5 Receiver unit. The 1:2 Component Audio over CAT5 Receiver unit connects to your remote HDTV component video displays, and audio inputs.

Note: Both analog and digital audio outputs are active on the receiver side when two-channel analog audio is used. If multi-channel digital audio is used, then the analog audio outputs will be inactive.

Gefen EXT-COMPAUD-CAT5-142 Receiver Unit Back View
Gefen EXT-COMPAUD-CAT5-142 Receiver Unit Back View

Gefen EXT-COMPAUD-CAT5-142 Sender Unit Side Views
Gefen EXT-COMPAUD-CAT5-142 Sender Unit Side Views


Gefen EXT-COMPAUD-CAT5-142 Features:

  • Supports up to 1080p component video
  • Supports analog L+R audio and multichannel digital audio via optical Toslink or S/PDIF jacks
  • Simple plug-and-play installation
  • Equalizations for different CAT-5 skews
  • No loss of quality over long distances

Package Includes:

  • 1:2 Component Audio over CAT5 Sender
  • 1:2 Component Audio over CAT5 Receiver
  • 5 RCA Component Cable (M-M) 6 ft
  • 2x 5V DC power supply
  • User's Manual

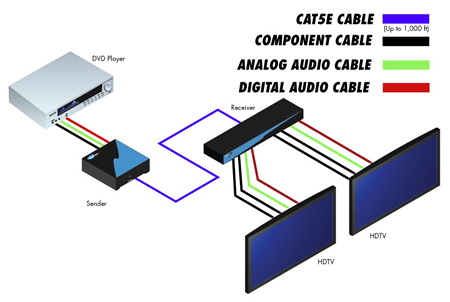

Gefen Component Audio over CAT5 Wiring Diagram
Gefen Component Audio over CAT5 Wiring Diagram

Gefen EXT-COMPAUD-CAT5-142 Specifications:

Mechanical
Shipping Weight 5 lbs. (2.3 kg.)
Power
Power Supply 5V DC
Power Consumption 20 watts (max.)
Input Signal
Input Video Signal 1.2 Volts p-p
Input Sync Signal 5 Volts p-p (TTL)
Frequency Range
Horizontal 15-70 KHz
Vertical 30-170 Hz
Video Amplifier Bandwidth 350 MHz
Video In/Out 6 RCA component
Audio In/Out 4 RCA Audio, 2 SPDIF, 2 TOSlink
Link Connector RJ-45 Shielded
