Gefen 1:8 Component Audio CAT5 Distribution Amplifier

EXT-COMPAUD-CAT5-148

$1,499.00

Discontinued
For upgrade or replacement options: Contact Us

The Gefen EXT-COMPAUD-CAT5-148 is an 1:8 Component/Audio Over CAT5 Distribution Amplifier (DA) that sends up to 8 identical sets of sparkling clear component video with audio to remote locations via eight CAT5 cables at distances of up to 1000 feet. Now you can reliably and cleanly distribute up to eight copies of a video signal with digital or analog audio to remote locations without having to worry about signal drop-off and loss of quality.

How It Works
Simply plug in your component video and audio from your source to the 1:8 Component/Audio DA Sender. Your audio can be analog, digital SPDIF or digital TOSlink. Run your CAT5 cables from the Sender box to up to 8 remote destinations, then connect a receiver box to each CAT5 cable at the terminating end. Attach the displays to the receivers to, power on all equipment, and you should see beautiful video. All audio ports on the receiver will also be active, so even if your source only had analog audio your Component Audio Receiver will have digital and analog audio output. The sender and receiver both will be powered individually by 5V power supplies.

Gefen EXT-COMPAUD-CAT5-148 Sender Back View
Gefen EXT-COMPAUD-CAT5-148 Sender Back View

Gefen EXT-COMPAUD-CAT5-148 Receiver Side Views
Gefen EXT-COMPAUD-CAT5-148 Receiver Side Views

Gefen EXT-COMPAUD-CAT5-148 Features:

  • Supports up to 1080p component video
  • Supports analog L+R audio and multichannel digital optical or coaxial
  • No Loss of Quality
  • Plug and play installation
  • Equalization adjustment for different CAT5e skews
  • One CAT5e cable for extension

Package Contents

  • 1:8 Component/Audio Over CAT5 DA Sender
  • (1) 1:8 Component/Audio Over CAT5 Distribution Amplifi er
  • (1) 6 Ft. 3 RCA Component Cable (M-M)
  • (1) 6 Ft. RCA Cable (M-M)
  • (1) 5V DC 2 AMP Power Supply
  • (1) User manual

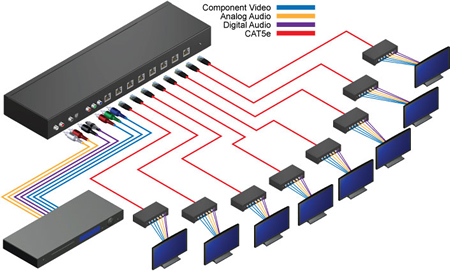

Gefen Component Audio CAT5 Distribution Amplifier Wiring Diagram
Gefen Component Audio CAT5 Distribution Amplifier Wiring Diagram

Gefen EXT-COMPAUD-CAT5-148 Specifications:

Mechanical
Height 1.8 in. (4.6 cm.)
Width 17 in. (48 cm.)
Depth 4.6 in. (11.7 cm.)
Input Signal
Video 1.2 Volts p-p
Sync 5 Volts p-p (TTL)
Frequency Range
Horizontal 15-70 KHz
Vertical 30-170 Hz
In/Out
Video 3 RCA component
Audio 2 RCA Audio, 1 SPDIF, 1 Optical
Video Amplifier Bandwidth 350 MHz
Power Supply 5V DC
Link Connector RJ-45 Shielded
