DisplayPort Extender Over CAT-7 (100 feet)

EXT-DP-2CAT7

$823.00$574.19
Save $248.81
FREE Shipping on orders over $100

The Gefen EXT-DP-2CAT7 DisplayPort Extender over CAT-7 allows the installation of a HDTV display up to 100 feet (30 meters) away from a Display Port source using two CAT-7 cables. Resolutions up to 1920 x 1200 (WUXGA) or 1080p Full HD when using a single CAT-7 cable, and up to 2560 x 1600 (WQXGA) when using two cables, can be supported. HDCP is also supported. The Receiver unit is powered by the first CAT-7 cable that extends the DisplayPort signal from the Sender unit, eliminating the need for an external power supply on the Receiver unit.

Connect the Sender unit to the DisplayPort source using the included DisplayPort cable. Connect the Receiver unit to the HDTV display using another DisplayPort cable. Connect the Sender unit to the Receiver unit using one or two CAT-7 cables, depending on the maximum required video resolution. Connect the included locking power supply to the Sender unit and an available electric outlet. The Receiver unit is powered by the Link 1 CAT-7 cable and does not require an external power supply. Turn on the power to the source and the display.

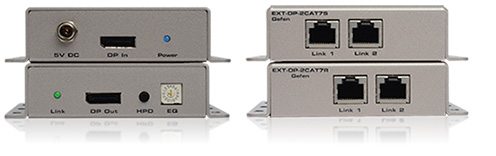

EXT-DP-2CAT7 DisplayPort Extender Inputs
Connections for the Gefen DisplayPort Extender
(EXT-DP-2CAT7)

EXT-DP-2CAT7 Package Includes

  • (1) DisplayPort Extender over CAT-7 - Sender Unit (EXT-DP-2CAT7S)
  • (1) DisplayPort Extender over CAT-7 - Receiver Unit (EXT-DP-2CAT7R)
  • (1) 6 ft.DisplayPort Cable (CAB-DP-06MM)
  • (1) 5V DC Locking Power Supply (EXT-PS526AIP-LP)
  • (1) Quick-Start Guide (QSG-DP-2CAT7)

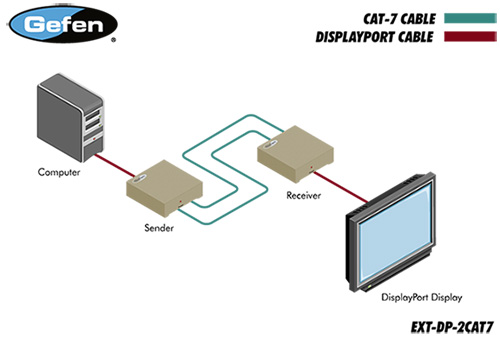

EXT-DP-2CAT7 DisplayPort Extender Application Diagram
Typical Application Diagram

EXT-DP-2CAT7 Features

  • Extends DisplayPort up to 100 feet (30 meters)
  • Supports resolutions up to 2560 x 1600 over two CAT-7 cables, and up to 1920 x 1200 over one CAT-7 cable
  • HDCP compliant
  • Supports DisplayPort 1.1a
  • 16-position EQ rotary switch to compensate for cable skew
  • HPD Auto-Calibration button
  • Pre-emphasis switch
  • Drive level switch
  • Boost level switches
  • Power On and Link indicators
  • Locking power supply connectors
  • Surface-mountable

EXT-DP-2CAT7 Specifications

  • Video Data Rate: up to 2.7 Gbps
  • Video Input Connector (Sender): (1) DisplayPort, 20-pin, female
  • Video Output Connector (Receiver): (1) DisplayPort, 20-pin, female
  • Link Connectors (Sender/Receiver): (2) RJ-45, shielded
  • EQ Switch (Receiver): (1) 16-position rotary type
  • HPD Auto Calibration button (Receiver): (1) tact-type
  • Boost Level Switches (Sender): (2) 3-position DIP switch
  • Drive level switch (Sender): (1) 3-position DIP switch
  • Power On indicator (Sender): (1) LED, blue
  • Link indicator (Receiver): (1) LED, green: good link, red: no link
  • Power Supply connector (Sender): (1) 5V DC, locking type
  • Operating Temperature: +32 to +104 °F (0 to +40 °C)
  • Dimensions (W x H x D) (Sender/Receiver): 4.3" x 1" x 3.3" (110mm x 25mm x 83mm)
  • Shipping Weight: 3 lbs (1.4 kg)
