Gefen DVI 1000HD Extender



Recommended replacement: DVI Via Fiber Extenders
Alternative options: Contact Us

The Gefen DVI?1000HD (EXT-DVI-1000HD) extends your DVI display up to 1640 feet (330 feet HDCP) away from your source.

How it Works

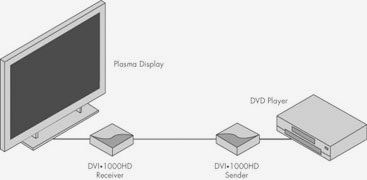

The Gefen DVI?1000HD (EXT-DVI-1000HD) sender unit sits next to your computer, set-top box or DVD player source. Cables supplied with the DVI?1000HD (EXT-DVI-1000HD) connect your DVI source to the send unit. The Gefen DVI?1000HD (EXT-DVI-1000HD)  receive unit sits next to your DVI display - up to 1640 feet (330 feet HDCP) away. The display plugs into the back of the DVI?1000HDR receiver unit. One CAT-5 cable and a multi mode LC fiber optic cable (4 strand) connect the DVI?1000HDS and the DVI?1000HDR units to each other.

The Gefen DVI?1000HD (EXT-DVI-1000HD)  is HDCP compatible.

The Gefen DVI?1000HD (EXT-DVI-1000HD)

Gefen DVI?1000HD


  • Uses a four strand multi mode LC fiber optic cable
  • Uses one CAT-5 cable for DDC and control signals
  • Extends any DVI (digital visual interface) compliant device up to 1640 feet (330 feet HDCP) from the computer
  • Saves space on your desktop Increases productivity
  • Eliminates computer noise where you work
  • Supports up to 1920 x 1200 x 60 Hz
  • Support HDTV resolutions
  • Supports DDWG standard for DVI compliant monitors
  • Installs in minutes


Video Amplifier Bandwidth 1.65 Gbps
Input Video Signal 1.2 volts p-p
Input DDC Signal 5 volts p-p (TTL)
DVI Connector Type DVI-D 19 pin
Link Connector RJ-45
Power Supply 12 VDC
Power Consumption 15 Watts (max)
Dimensions 3.25? D x 4.25 ? W x 1? H

Package Includes

One 12V Power Supply
One 6 ft DVI-SL cable (M-M)
User's Manual
