The Gefen DVI Hub (EXT-DVI-142):  One DVI Input, Two DVI Outputs

The ex-tend-it DVI Hub (EXT-DVI-142)  allows computers with DVI graphic cards to be connected to two DVI displays. The DVI hub keeps your desk clutter-free, allowing relocation of your displays up to 50 feet (1280x1024) away. For extending the DVI Hub must be connected at the end of the DVI extension cable.

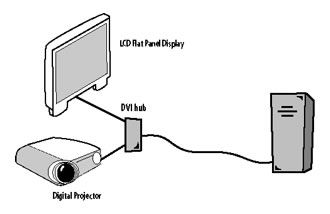

How the EXT-DVI-142 works

The ex-tend-it DVI Hub (EXT-DVI-142) is connected with a DVI (male to male) cable from your computer's DVI graphic port to the DVI Hub input. There are two DVI outputs. DVI output one is the primary connection and is used for the main display. DVI output two is connected to the second display. The DVI Hub can be connected to any ADC Apple LCD display using the DVI to ADC Conversion Box.

Gefen EXT-DVI-142 Package Includes:

  • DVI Hub
  • 6ft DVI cable M-M
  • 17V Power Supply

Gefen EXT-DVI-142 Features:

  • Connects computers with DVI graphics to two DVI compatible monitors or projectors
  • Allows two DVI display monitors to be connected at the same time to the same video source
  • DVI cables are used to connect DVI input and DVI hub output
  • Extends any DVI-I (digital visual interface) (digital and analog) compliant device up to 50 feet from the computer
  • Extends any ADC (Apple display connector) compliant device up to 50 feet from the computer using the DVI to ADC Conversion Box
  • Simultaneous display at local and remote locations
  • Maintains highest DVI single link video resolution
  • Supports VGA extension through using DVI-I connection
  • Supports DDWG standard for DVI compliant monitors
  • Installs in minutes

    Height 1.75 in. (44.45 mm.)
    Width 8 in. (203.2 mm.)
    Depth 4 in (101.6 mm.)
    Shipping Weight 8 lbs. (3.63 kg.)
    Supply External 12 VAC
    Consumption 15 Watts (max.)
    Input Signal
    Input Video Signal 1.2 Volts p-p
    Input DDC Signal 5 Volts p-p (TTL)
    DVI Amplifier  1.65 GHz
    Actual  1.6 GHz
    DVI Connector Molex 24 pin female
