Gefen 1x4 DVI Monitor Switcher



Recommended replacement: SmartAVI DVS4P
Alternative options: Contact Us

The Gefen EXT-DVI-144M is a 1x4 DVI Monitor Switcher which works in reverse from our other switchers: it connects one high definition digital video source to four digital video displays one at a time. You switch to whatever display you want to view at any given time. This DVI monitor switch is ideal for environments that need to assign a main video source to several different displays, such as the home, office, recording studio or industrial complex that needs video in different rooms or at different desktops. Monitor selection is done via the IR remote control that comes with the unit. Full HDMI (audio and video) can also be accommodated using HDMI to DVI adapters (sold separately) on the input and output of the unit.

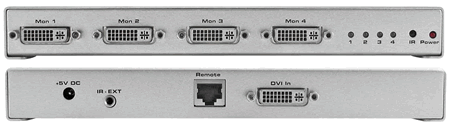

Gefen 1x4 DVI Monitor Switch Side Views
Gefen 1x4 DVI Monitor Switch Side Views

How the Gefen 1x4 DVI monitor switch works:

Connect your DVI source to the DVI Monitor Switcher using the DVI (male to male) cable that comes with the unit. Then connect up to four digital displays to the Switcher's DVI outputs. Once all the components are powered and connected, you select which display you want to view using the IR remote.

Gefen EXT-DVI-144M Features:

  • Switch multiple DVI/HDMI displays to one source
  • Maintains high single link 1920 x 1200 video resolution
  • Supports DDWG standard for DVI compliant monitors
  • Discrete IR remote (included); contact closure controllable
  • Parallel remote port (RMT-4 not included)
  • HDCP passthrough

Gefen EXT-DVI-144M Package Includes:

  • DVI Monitor Switcher
  • RMT-4IR IR remote unit
  • 6 foot DVI cable M-M
  • 5V Power Supply
  • User's Manual

Gefen EXT-DVI-144M Specifications:

Height 1.125 in. (2.858 cm.)
Width 9.125 in. (23.178 cm.)
Depth 3.25 in. (8.26 cm.)
Shipping Weight 4 lbs. (2 kg.)
Supply 5V DC
Consumption 10 watts (max)
DVI DVI-I 29 pin female (digital only)
IR Ext. Port mini-stereo
Remote RJ-45 shielded
Input Signal
Video 1.2 volts p-p
DDC 5 volts p-p (TTL)
Video Amplifier Bandwidth 1.65 Gbps
Single Link Range 1080p/1920 x 1200
