Gefen DVI Over CAT5 Extender up to 230 ft.

EXT-DVI-1CAT5-SR

$493.00$343.95
Save $149.05
FREE Shipping on orders over $100

The Gefen EXT-DVI-1CAT5-SR DVI ELR Lite Extender over one CAT5 allows the extension of any DVI source to a monitor or touch screen display, up to 230 feet (70 meters) using a CAT-6A e, and up to 200 feet (60 meters) over one CAT-5e. The EXT-DVI-1CAT5-SR is HDCP compliant. It uses Gefen's ELR Lite implementation of HDBaseT Lite technology, allowing the DVI source to be extended over a single CAT-5e or CAT-6 cable, reducing cable costs and facilitating simple and effective installation.

How It Works:

Connect the included DVI cable to the computer or other DVI source and the Sender unit. Connect the Receiver unit to a Hi-Def display with another DVI cable. Use up to 230 feet (70m) of CAT-6A cable or up to 200 feet (60 meters) of CAT-5e to connect the Sender to the Receiver unit. Connect the included locking power supplies to the Sender unit and the Receiver units and plug the power supplies to available electrical outlets. Power On all connected source and display equipment.

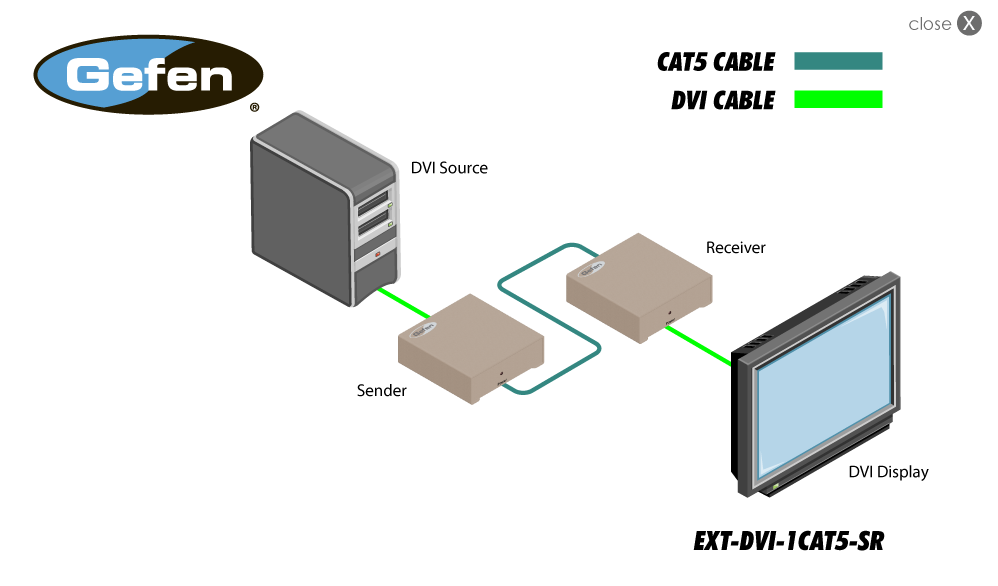

Gefen EXT-DVI-1CAT5-SR Diagram

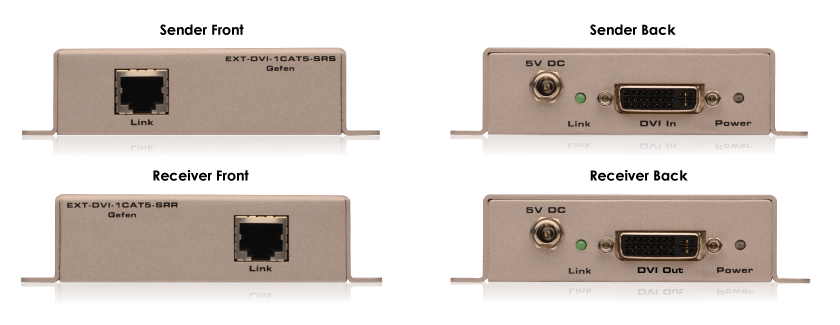

Gefen EXT-DVI-1CAT5-SR Rear View

Gefen EXT-DVI-1CAT5-SR Features and Benefits:

  • Extends DVI up to 230 feet (70 meters) over one CAT-6A cable
  • Extends DVI up to 200 feet (60 meters) over one CAT-5e cable
  • Supports resolutions up to 1920 x 1200 (WUXGA)
  • EDID management for rapid integration of source and display
  • HDCP compliant
  • Locking power supplies
  • Surface-mountable

Gefen EXT-DVI-1CAT5-SR Diagram
Gefen EXT-DVI-1CAT5-SR DVI Over CAT5 Extender Diagram

Gefen EXT-DVI-1CAT5-SR Package Contents:

  • 1 EXT-DVI-1CAT5-SR Sender Unit
  • 1 EXT-DVI-1CAT5-SR Receiver Unit
  • 1 6 ft. Dual-Link DVI Cable (M-M)
  • 2 5V/2.6A DC Locking Power Supply
  • 1 Quick-Start Guide

Gefen EXT-DVI-1CAT5-SR Specifications:

Mechanical
Width 4.3 in. (110 mm.)
Height1 in. (26 mm.)
Depth4.3 in. (110 mm.)
Weight0.36 lbs. (0.16 kg)
Environmental
Operating Temperature32 - 113 °F (0 - 45 °C)
Operating Humidity0 to 90% RH non-condensing
Connectors
Input (Sender)1 x DVI-I, 29-pin, female (digital only)
Output (Receiver)1 x DVI-I, 29-pin, female (digital only)
Link (Sender/Receiver)1 x RJ-45
Electrical
Maximum Pixel Clock165 MHz
Power Indicator1 x LED, blue
Link Indicator1 x LED, green
Power
Power Input1 x 5V DC (each unit)
Power Consumption10W per unit (max.)
Control
DIP Switch (Sender unit)4 x DIP Switches for EDID management,
HPD, and HDCP
Supported Formats
Resolutions (max.)1920 x 1200 (WUXGA); 1080p Full HD
UPC / EAN Barcode icon
UPC 845344038759
EAN 0845344038759
