Gefen DVI to HD-SDI PLUS Scaler Box

EXT-DVI-2-HDSDISP

$1,499.00

Discontinued
For upgrade or replacement options: Contact Us

The Gefen EXT-DVI-2-HDSDISP is a DVI to HDSDI Scaler PLUS is the newest revision of the Gefen HDSDI conversion line incorporating Full Single link DVI-D conversion scaled to your choice of SD/HDSDI Single or Dual link modes. Resolutions of up to 1080p are supported over the HDSDI link for those that want true "High Definition". This enhanced scaler box allows for new features such as: Genlock, Color & Gamma Correction, Noise Reduction, Detail Enhancement, Aspect Ratio Selection, Pattern Generator Mode, & Multiple Language Menu Support.

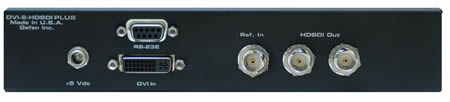

Gefen DVI to HDSDI Scaler Box

How the Gefen Scaler Box works:

DVI devices are connected to the DVI input and SDI devices are connected to the SDI output. When the source, display and the Scaler are powered and connected, video signals are converted to the proper format.

Package Includes:

  • DVI to HDSDI Scaler
  • 5v Power Supply
  • Users Manual

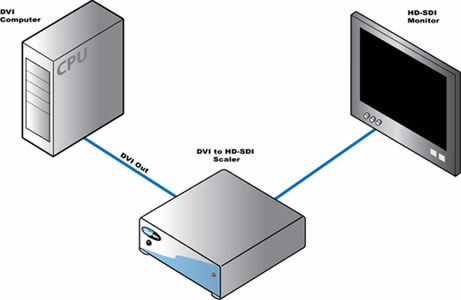

Gefen DVI to HD-SDI Scaler Box Wiring Diagram
Gefen DVI to HD-SDI Scaler Box Wiring Diagram

Gefen DVI Scaler Box Features:

  • 10-bit resolution for greater precision and dynamic range
  • Proprietary 10-bit motion adaptive video de-interlacing with edge interpolation for HD / SD formats
  • Advanced noise reduction and detail enhancement
  • Max. active image size of 2048 samples x 2048 lines PBP processing for various combinations of video and graphics with alpha blending
  • Fully integrated sprite based multi-plane OSD controller.
  • Frame rate conversion to / from any refresh rate
  • Pattern mode w/ color bars & corss hatch patterns
  • Color correction
  • Noise Reduction
  • Detail Enhancement
  • Brightness Adjustment
  • Gamma Selection
  • Aspect Ratio Select
  • Custom Timing output mode
  • French/English Menu Set
  • RS-232 upgradeable firmware
  • RS-232 and/or IR Control
  • Genlock

Gefen EXT-DVI-2-HDSDISP Specifications:

Mechanical
Height 1.75 in. (4.45 cm.)
Width 8.25 in. (20.96 cm.)
Depth 7.5 in. (19.05 cm.)
Weight 5 lbs. (2 kg.)
Power
Supply 5V DC
Consumption 20 watts (Max.)
Video Bandwidth
Input 1.65 Gbps
Output 2x 1.485 Gbps
Maximum Resolution
Input  2048x1080
Output 1080p with Dual Link HD-SDI
Connectors
DVI DVI-I 29 pin female (digital only)
SDI/HDSDI BNC female
Data Port Serial RS-232
