Gefen DVI to HD-SDI Single Link Scaler Box



Recommended replacement: Gefen EXT-HD-3G-C
Alternative options: Contact Us

The Gefen EXT-DVI-2-HDSDISSL is a DVI to HDSDI Single Link Scaler which is the newest revision of the Gefen HDSDI conversion line incorporating single link DVI-D conversion scaled to SD/HDSDI Single link modes. Resolutions of up to 1080p are supported over the HDSDI link for those that want true "High Definition".

Gefen DVI to HDSDI Scaler Box Backside
Gefen DVI to HDSDI Scaler Box Backside

How the Gefen DVI to HDSDI scaler box works:

DVI devices are connected to the DVI input and SDI devices are connected to the SDI output. When the source, display and the Scaler are powered and connected, video signals are converted to the proper format.

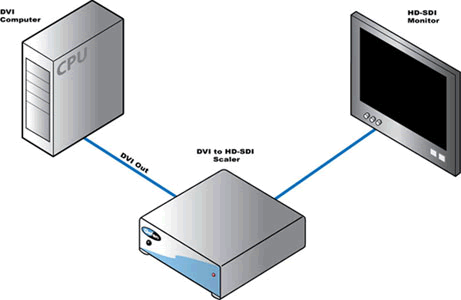

Gefen DVI to HD-SDI Scaler Wiring Diagram
Gefen DVI to HD-SDI Scaler Wiring Diagram

Gefen EXT-DVI-2-HDSDISSL Features:

  • 10-bit resolution for greater precision and dynamic range
  • Proprietary 10-bit motion adaptive video de-interlacing with edge interpolation for HD / SD formats
  • Advanced noise reduction and detail enhancement
  • Max. active image size of 2048 samples x 2048 lines PBP processing for various combinations of video and graphics with alpha blending
  • Fully integrated sprite based multi-plane OSD controller.
  • Frame rate conversion to / from any refresh rate
  • Pattern mode w/ color bars & corss hatch patterns
  • Color correction
  • Noise Reduction
  • Detail Enhancement
  • Brightness Adjustment
  • Gamma Selection
  • Aspect Ratio Select
  • Custom Timing output mode
  • French/English Menu Set
  • RS-232 upgradeable firmware
  • RS-232 and/or IR Control

Gefen EXT-DVI-2-HDSDISSL Package Includes:

  • DVI to HDSDI Single Link Scaler
  • 5v Power Supply
  • Users Manual

Gefen EXT-DVI-2-HDSDISSL Specifications:

Height 1 in. (2.54 cm.)
Width 6.5 in. (16.5 cm.)
Depth 6.75 in. (17.14 cm.)
Weight 5 lbs. (2 kg.)
Supply 5V DC
Consumption 20 watts (max)
Video Bandwidth
Input 1.65 Gbps
Output 1.485 Gbps
Maximum Resolution
Input 2048x1080
Output 2048x1080p24
DVI DVI-I 29 pin female (digital only)
Data port Serial RS-232
UPC / EAN Barcode icon
UPC 845344055350
EAN 0845344055350
