Gefen DVI to VGA Conversion Box

EXT-DVI-2-VGA

$399.00

Discontinued
Replaced by: Gefen EXT-DVI-2-VGAN
Alternative options: Contact Us

The Gefen EXT-DVI-2-VGA is a DVI to VGA Conversion Box which converts DVI / ADC graphics for connection to analog SVGA monitors.

Connect your analog monitor to the HD-15 female connector output of the DVI to VGA Conversion Box. Connect the DVI (M-M) cable between the DVI connector on your computer's graphic card and the DVI input of the conversion box. The converter generates all the compatible digital to analog conversion signals to make the connection between the digital input and the analog output work.

Note: The digital to analog converter in the DVI to VGA conversion box will handle any resolution, but the default EDID stored in the unit is 1600x1200@60hz.  If you require a different EDID please select a resolution from the drop down list above and a box will be programmed to your specifications.

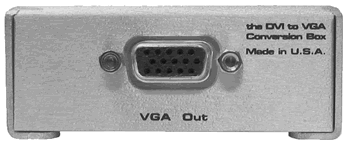

Gefen DVI to VGA Conversion Box Backside

Gefen DVI Conversion Box Features:

  • Connects computers with DVI-D connectors to analog SVGA monitors or projectors
  • Maintains up to 1920 x 1200 x 60hz resolution
  • Supports DDWG standard for DVI monitors

Gefen EXT-DVI-2-VGA Package Includes:

  • the DVI to VGA Conversion Box
  • (1) 5v Power Supply
  • (1) 6ft DVI Cable


Gefen EXT-DVI-2-VGA Specifications:

Mechanical
Height 1 in. (2.54 cm.)
Width 2.75 in. (6.99 cm.)
Depth 4.5 in. (11.4 cm.)
Weight 5 lbs. (2 kg.)
Power
Supply 5V DC
Consumption 5 watts (max)
Connectors
DVI DVI-I 29 pin female (digital only)
VGA type HD-15 female
Input Signal
Video 1.2 volts p-p
DDC 5 volts p-p (TTL)
Bandwidth
DVI 1.6 Gbps
VGA 350 Mhz
