Gefen DVI 2000HD Fiber Extender

EXT-DVI-2000HD

$1,399.00

Discontinued
Recommended replacement: Gefen EXT-DVI-FMP
Alternative options: Contact Us

The Gefen EXT-DVI-2000HD extends your dual link DVI display up to 1640 feet away from your source. Dual link DVI describes the use of all 24 pins of the DVI (digital visual interface) connector to achieve super high resolutions.  The DVI-2000HDS sender unit sits next to your computer, set-top box or DVD player source. Cables supplied with the DVI-2000HD connect your DVI source to the send unit. The DVI-2000HDR receiver unit sits next to your DVI display - up to 1640 feet away. The display plugs into the back of the receiver unit. One CAT-5 cable and multi mode LC fiber optic cable (8 strand) connect the sender and the receiver units to each other.

Gefen DVI 2000HD Sender & Receiver Backsides
Gefen DVI 2000HD Sender & Receiver Backsides

Gefen DVI 2000HD Features:

  • Extends any dual link DVI compliant device up to 1640 (500 meters) feet from the computer
  • Uses an 8 strand multimode LC-LC fiber optic cable
  • Uses one CAT-5e cable for DDC and control signals
  • Support HDTV resolutions
  • Supports up to 3840 x 2400 resolutions
  • Supports DDWG standard for DVI compliant monitor
  • HDCP compliant

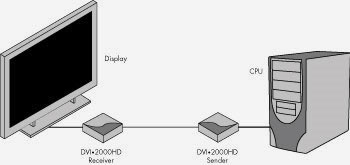

Gefen DVI 200HD Extender Wiring Diagram
Gefen DVI 200HD Extender Wiring Diagram

Package Includes:

  • DVI 2000HDS sender unit
  • DVI 2000HDR receiver unit
  • (1) 12v Power Supply
  • (1) 6ft DVI-DL cable (M-M)
  • User's Manual

Gefen EXT-DVI-2000HD Specifications:

Mechanical
Height 1 in. (2.54 cm.)
Width 4.25 in. (10.80 cm.)
Depth 3.25 in. (8.26 cm.)
Shipping Weight 5 lbs. (2 kg.)
Power
Supply 12V DC
Consumption 36 watts (max)
Connectors
DVI DVI-D (24 pin) female
Video LInk LC
DDC Link RJ-45 shielded
Input Signal
Video 1.2 volts p-p
DDC 5 volts p-p (TTL)
Video Amplifier Bandwidth 2x1.65 Gbps
