Gefen DL 2-Port DVI KVM Switch

EXT-DVI-241DL

$399.00

Discontinued
Replaced by: Gefen EXT-DVIKVM-241DL
Alternative options: Contact Us

Gorgeous, super high resolution video supplied with Dual Link DVI Connectors

The ex•tend•it 2x1 DL DVI Switcher allows you to easily switch between two cross-platform dual link DVI computers using just one dual link DVI display and USB 2.0 keyboard and mouse. Dual link DVI describes the use of all 24 pins of the DVI connector to achieve mega high video resolutions up to 3840x2400. USB 2.0, also known as hi-speed USB, is the next generation of USB capable of sending data significantly quicker than before. Stereo audio is routed through along with the video to the display. Audio, video and control signals are "switched" for each computer upon selection, providing you with an easy and effective method of accessing two computers from one workstation without the hassle of networking.

How it Works
You simply connect your dual link DVI display and USB 2.0 keyboard/mouse to the Switcher's outputs. Then you connect both computers' dual link DVI, USB and audio ports to the Switcher's inputs using the supplied cables. From there, you select the computer you want using the IR remote that comes with the unit or with any contact closure remote control. It allows you to choose between a Macintosh or PC keyboard/video/mouse combination.

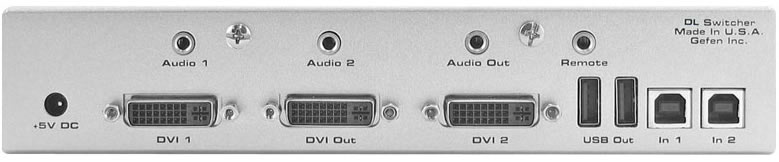

Gefen DL Switcher Rearview

Features:

  • Saves you money on hardware costs
  • Saves you space on your desktop
  • Increases your productivity by providing instant access to greater amounts of data
  • Maintains highest 3840 x 2400 x 60Hz resolution video
  • No loss of image quality when switching
  • Option of using either PC or Mac keyboard/mouse
  • Easily accesses two Dual Link DVI computers
  • Comes with its own IR remote control
  • Rackmountable

Specifications:

  • Video Amplifier Bandwidth: 2x1.65 GHz
  • Dual Link Range: 3840 x 2400
  • Vertical Frequency Range: 60 Hz
  • DVI Input/Output Connector: Type DVI-I (29 pin), Supports ONLY Digital Video Signals
  • USB 2.0 Input Connection: Type "B"
  • USB 2.0 Output Connection: Type "A"
  • Power Consumption: 15 Watts (max.)
  • Power Supply: 5 VDC
  • Dimensions: (8.5”in./215.9mm) W x (1.75”in./44.45mm) H x (4.625”in./117.475mm) D
  • Rackmountable: 1 Rack Space
  • Shipping Weight: 5 lbs

Package Includes:

  • DL Switcher
  • RMT-2IR
  • One 5V Power Supply
  • Two 6ft Dual Link DVI cables
  • Two 6ft USB Cables
  • Two Audio Cables
