Gefen 2x1 SL DVI Switch

EXT-DVI-241SL

$299.00

Discontinued
Recommended replacement: Gefen EXT-DVIKVM-241DL
Alternative options: Contact Us

High resolution digital video plus stereo audio supported

The ex•tend•it 2x1 SL DVI Switcher allows you to easily switch between two cross-platform DVI computers using just one DVI display and USB 2.0 keyboard and mouse. It’s referred to as single link DVI to differentiate it from dual link DVI. Single link describes the standard use of DVI, capable of resolutions up to 1920 x 1200; dual link DVI describes the use of all 24 pins of the DVI connector to achieve resolutions up to 3840 x 2400. USB 2.0, also known as hi-speed USB, is the next generation of USB capable of sending data significantly quicker than before. Stereo audio is routed through along with the video to the display. Audio, video and control signals are "switched" for each computer upon selection, providing you with an easy and effective method of accessing two computers from one workstation without the hassle of networking.

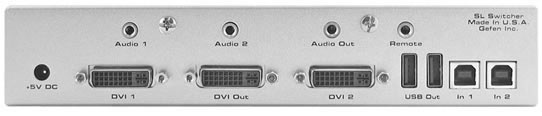

Gefen SL Switcher EXT-DVI-241SL Rearview

How it Works
You simply connect your DVI display and USB 2.0 keyboard/mouse to the Switcher's outputs. Then you connect both computers' DVI, USB and audio ports to the Switcher's inputs using the supplied cables. From there, you select the computer you want using the IR remote that comes with the unit or with any contact closure remote control. It allows you to choose between a Macintosh or PC keyboard/video/mouse combination.

Features:

  • Saves you money on hardware costs
  • Saves you space on your desktop
  • Increases your productivity by providing instant access to greater amounts of data
  • Maintains high 1920 x 1200 @ 60Hz resolution video
  • No loss of image quality when switching
  • Option of using either PC or Mac keyboard/mouse
  • Easily accesses two DVI computers
  • Comes with its own IR remote control
  • Rackmountable

Specifications:

  • Video Amplifier Bandwidth: 1.65 GHz
  • Single Link Range: 1920 x 1200
  • Vertical Frequency Range: 60 Hz
  • DVI Input/Output Connector: Type DVI-I (29 pin), Supports ONLY Digital Video Signals
  • USB 2.0 Input Connection: Type "B"
  • USB 2.0 Output Connection: Type "A"
  • Power Consumption: 15 Watts (max.)
  • Power Supply: 5VDC
  • Dimensions: (8.5”in./215.9mm) W x (1.75”in./44.45mm) H x (4.625”in./117.475mm) D
  • Rackmountable: 1 Rack Space
  • Shipping Weight: 5 lbs

Package Includes:

  • SL Switcher
  • RMT-2IR
  • One 5V Power Supply
  • Two 6ft DVI cables
  • Two 6ft USB cables
  • Two audio cables
