DVI, USB 2.0, RS-232 & Analog Audio Extender Kit (Transmitter & Receiver)


Save $1,040.00
FREE Shipping on orders over $100

The DVI 3600HD allows you to operate a single DVI-compliant computer from two workstations, by extending DVI, USB 2.0, analog audio, and RS-232 from the computer to the remote workstation. USB peripherals can be placed at either of the two locations, by the Sender or Receiver unit.

How It Works
The DVI 3600HD consists of a Sender and a Receiver unit. The Sender unit connects to the computer's DVI-compliant video card output, analog audio jack, RS-232 port, and USB 2.0 port. The DVI 3600HD Receiver unit connects to the remote display and peripherals. Four strands of LC fiber optic cable connect the Sender and Receiver units together.

The DVI 3600HD has two modes of USB operation. When in local mode, the computer sees USB devices connected to the Sender unit. When in remote mode, the computer sees USB devices connected to the Receiver unit. These two modes are configured using a switch on the front panel of the Sender unit.

Note: Extension distance will depend on the type of fiber media used:
Single-mode fiber:WUXGA (1920 x 1200) resolution @ 6,600 ft. (2000m)
Multi-mode fiber: WUXGA (1920 x 1200) resolution @ 1,650 ft. (500m)

Gefen EXT-DVI-3600HD Sender & Receiver Back

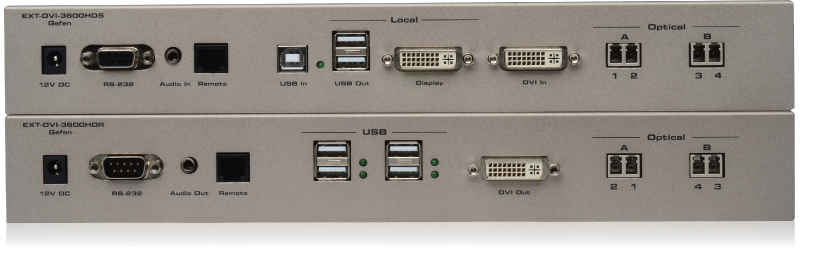

Back of the transmitter and receiver units

EXT-DVI-3600HD Features

  • Extends DVI, USB2.0, RS-232, and analog audio up to 6,600 feet (2000 meters) with single-mode fiber, and up to 1,650 feet (500 meters) with multi-mode fiber
  • Supports video resolutions up to 1920 x 1200
  • Uses four-strand single-mode or multi-mode LC-terminated fiber cables
  • Supports Virtual DDC1 and DDC2B protocols
  • Supports Local and Virtual EDIDs
  • Supports USB 2.0 and USB 1.1
  • Configurable to allow access of USB devices located at Sender Side or Receiver Side
  • Rack-mountable (rack ears included)

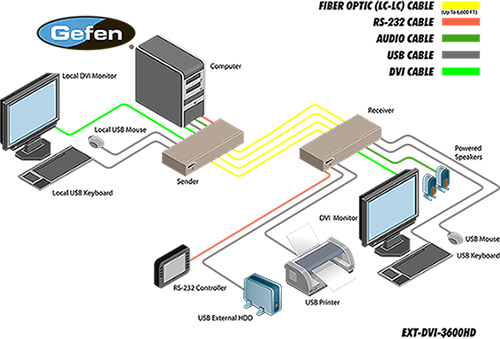

Gefen EXT-DVI-3600HD application diagram
EXT-DVI-3600HD Fiber Optic DVI Extender Application Diagram

Package Includes

  • (1) DVI 3600HD Sender unit (EXT-DVI-3600HDS)
  • (1) DVI 3600HD Receiver unit (EXT-DVI-3600HDR)
  • (1) 6 ft. DVI-DL Cable (M-M) (CAB-DVIC-DL-06MM)
  • (1) 6 ft. DB9 RS-232 Cable (M-F) (CAB-DB9-6MF)
  • (1) 6 ft. USB Cable (A-B) (CAB-USB-6)
  • (2) 12V/3A Power Supplies (EXT-PS12U35A)
  • (2) AC Power Cords (CAB-POWERCORD-US)
  • (1) Set of Rack Ears (EXT-RACK-OP-03-BRZ)
  • (1) Quick-Start Guide (QSG-DVI-3600HD)
Dimensions 12.4" W x 1.6" H x 5" D (315mm x 40mm x 127mm)
Weight 8 lbs.
Maximum Pixel Clock 165 MHz
Input Video Signal 1.2 Volts p-p
Input DDC Signal 5 Volts p-p (TTL)
DVI Connectors DVI-D 24-pin female (Sender & Receiver)
USB Input USB "B" male (Sender)
USB Outputs 2 x USB "A" female (Sender)
USB Outputs 4 x USB "A" female (Receiver)
RS-232 Connectors female 9-pin DB9 (Sender) / Male 9-pin DB9 (Receiver)
Link Connector (4) Type LC fiber connectors (2 x LC Duplex)
Fiber Cable CAB-LC-XXX (62.5μ multi-mode)
Audio Connector 3.5mm mini-stereo (Sender & Receiver)
Power Supply 2 x 12V DC, Total 72W
Power Consumption 36 Watts (max per unit)
UPC / EAN Barcode icon
UPC 845344077574
EAN 0845344077574
Question: DVI3600HD Spec sheet states - "Supports Virtual DDC1 and DDC2B protocols". The previous model, DVI3500 spec sheet states - "Supports Virtual DDC and DDC2B". Can you please shed some insight on why these two identical features are not documentation the same on the Spec sheets?
Answer: Thank you for your inquiry,

Both devices support DDC1 and DDC2B - the newer spec sheet most likely made the specification of "DDC1" as opposed to just "DDC" as DDC in general can also just mean the whole suite of standards including DDC1, DDC2B, DDC/CI, E-DDC, etc.

Here is a simple breakdown for differences between DDC protocols.
