Gefen 4x4 DVI Matrix KVM Switch

EXT-DVI-444

$2,499.00

Discontinued
Recommended replacement: Gefen EXT-DVIKVM-444DL
Alternative options: Contact Us

Now you can easily combine four cross-platform computers and four digital displays without networking. Our 4x4 DVI Matrix provides a simple, reliable and highly effective method of creating multiple computer workstations, with each capable of accessing any one of the computers or sources at any time by remote control. You also have the option of setting up the four stations locally or extending them with a Gefen extender. When used with computers, USB control signals follow the DVI input for optimal control.

How it Works:

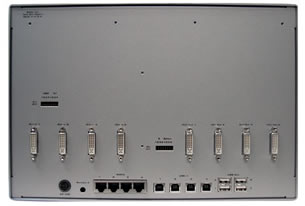

The 4x4 Matrix Switcher has four DVI inputs and four DVI outputs. You simply connect your four computers's DVI ports to the Switcher's inputs, then connect your four DVI displays to the Switcher's outputs. USB keyboard and mouse signals, once connected, follow the DVI switched input for each computer.

Gefen DVI matrix

Notes: Switching is done by using the RMT-4 wired remote, RMT-16IR remote or by one-wire serial control.
Any Apple flat panel display can be connected when used with the ex•tend•it DVI to ADC Conversion Box

This device is HDCP Pass-Through for only one output.

Features:

  • Increases your productivity by providing you with access to up to four computers from one workstation without networking
  • Maintains highest resolution digital video with no loss of quality
  • Supports either PC or Mac USB keyboards/mice
  • Supports Apple ADC displays when used with the DVI to ADC Conversion Box
  • Rackmountable

Specifications:

  • Video Amplifier Bandwidth2.4 GHz
  • Actual Bandwidth: 1.65 GHz
  • Input Video Signal: 1.2 Volts p-p
  • Input Sync Signal: 5 Volts p-p (TTL)
  • Single Link Range: 1900x1200 @60HZ
  • DVI Connector: Molex 24 pin female connector
  • USB Input Connectors: Type “B”
  • USB Output Connectors: Type ”A”
  • Video In: DVI-I Dual Link
  • Video out:DVI-I Dual Link
  • Power Supply: 12 VDC
  • Dimensions: 8.7”H x 13”W x 6.7”D
  • Rackmountable: 4 Rack Space
  • Shipping Weight: 10 lbs

Package Includes:

  • the 4x4 DVI Matrix
  • RMT-16IR
  • One 24v Power Supply
  • Four 6ft DVI cables
  • Four 6ft USB cables
