Gefen 8x1 DVI Switcher

EXT-DVI-841

$899.00

Discontinued
Recommended replacement: Rose AVS-1x08DVI
Alternative options: Contact Us

The Gefen EXT-DVI-841 is a plug and play solution, the 8x1 DVI Switcher connects eight digital video source devices, such as DVI-based computer systems and links them to one DVI display. You select what source will be viewed on the display using the IR remote control or through RS-232 control. The discrete IR codes can also be programmed into any universal remote device, offering an alternative to multiple remote control confusion.

Simply connect your DVI display to the Switcher's display output. Then, using the eight high quality DVI cables that come with the 8x1 DVI Switcher, plug each one into the eight DVI source devices, then connect them to the Switcher's inputs. Once the source devices and the display are powered on and connected, you switch between source devices using the RMT-8IR remote control or your own universal remote.

Gefen 8x1 DVI Switcher Backview

Gefen 8x1 DVI Switcher Backview

Gefen EXT-DVI-841 Features:

  • Switches easily between any eight DVI computers or HD DVI sources
  • Maintains highest resolution single link video
  • Extends the range of HDTV devices by equalizing and reclocking the HDTV signal
  • Discrete IR remote (included)
  • Serial RS-232 remote port
  • Supports resolutions up to 1080p, 2K, and 1920 x 1200
  • Supports DDWG standards for DVI monitors
  • Rack ears included
  • HDCP pass-through

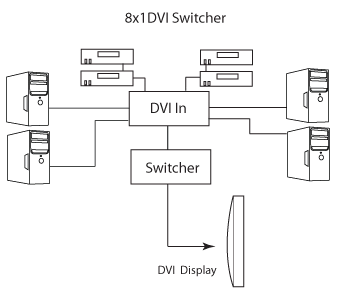

Gefen 8x1 Switcher Application Diagram

Gefen 8x1 Switcher Application Diagram

Package Includes:

  • 8x1 DVI Switcher
  • RMT-8IR
  • One 5V Power Supply
  • Eight 6ft Dual Link DVI cables
  • Rack ears

Gefen EXT-DVI-841 Specifications:

Mechanical
Height 1.75 in. (4.40 cm.)
Width 17 in. (43 cm.)
Depth 4.4 in. (11.1 cm.)
Weight 12 lbs. (6 kg.)
Power
Supply 5V DC
Consumption 20 watts (max)
Video Amplifier Bandwidth 165 MHz
Input Signal
Input Video Signal 1.2 volts p-p
Input DDC Signal 5 volts p-p (TTL)
Single Link Range 1920 x 1200
DVI Connector DVI-I 29 pin female (digital only)
Rackmountable 1U Rack Space
