Gefen 8x8 DVI Matrix

EXT-DVI-848

$3,604.00

Discontinued
For upgrade or replacement options: Contact Us

The Gefen EXT-DVI-848 is a 8x8 DVI Matrix that switches eight DVI computers to any eight DVI displays.

This DVI Matrix allows you to combine eight cross-platform computers and eight digital displays without networking. The Matrix provides a highly effective method of creating multiple computer workstations, with each workstation capable of accessing any one of the computers or sources at any time by remote control. You also have the option of setting up the eight stations locally or extending them with an extender.

The 8x8 Matrix has eight DVI inputs and eight DVI outputs. You connect your eight computer DVI ports to the 8x8 Matrix inputs, then connect your eight DVI displays to the 8x8 Matrix outputs.

Note: This device is not HDCP compliant.

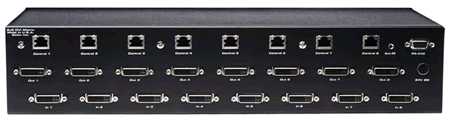

Gefen 8x8 DVI Matrix Backview

Gefen 8x8 DVI Matrix Backview

Gefen EXT-DVI-848 Features:

  • Increases your productivity by providing you with access to eight computers from eight workstations
  • Maintains beautiful, sharp HDTV resolutions up to 1080p, 2K, and 1920x1200
  • Discrete IR remote control included
  • Long-distance remote control at distances of up to 1000 feet optional using wired CAT5 cabled remotes
  • Serial RS232 port for remote control via computer or a control automation device such as Crestron
  • Supports DDWG standards for DVI monitors
  • Not HDCP compliant; for computers only.

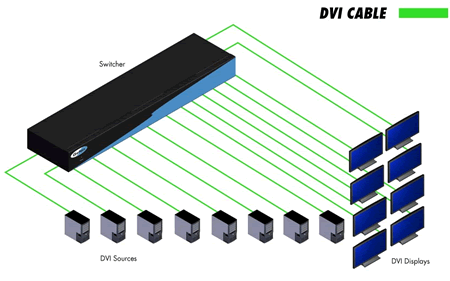

Gefen 8x8 DVI Matrix Application Diagram

Gefen 8x8 DVI Matrix Application Diagram

Package Includes:

  • 8x8 DVI Matrix
  • RMT-16IR infrared remote
  • One 24V DC Power Supply
  • Eight 6-foot DVI cables
  • Rack Ears
  • User's Manual

Gefen EXT-DVI-848 Specifications:

Mechanical
Height 3.5 in. (8.9 cm.)
Width 17.1 in. (43.4 cm.)
Depth 7.1 in. (18.0 cm.)
Weight 9 lbs. (4 kg.)
Power
Supply 24V DC
Consumption 60 Watts (max)
Video Amplifier Bandwidth 165 MHz per channel
Single Link Range 1080p (HDTV)/1920x1200 (PC)
Input Signal
Input Video Signal 1.2 Volts p-p
Input DDC Signal 5 Volts p-p (TTL)
Remote Control Ports One RS232 female, One mini-stereo
Rack mountable 2U rack space, rack ears included
DVI Connector DVI-I 29 Pin Female (digital only)
UPC / EAN Barcode icon
UPC 845344086736
EAN 0845344086736
