Gefen DVI CAT5 Extender

EXT-DVI-CAT5

$449.00

Discontinued
Recommended replacement: Icron EL5353 (00-00381)
Alternative options: Contact Us

The Gefen DVI CAT5 Extender (EXT-DVI-CAT5) extends your DVI display up to 150 feet away from your HDTV DVI or HDMI source using cost effective CAT5 cables.

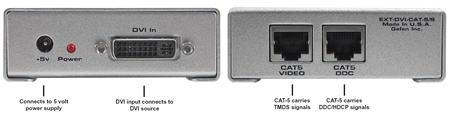

Gefen EXT-DVI-CAT5 Sender Unit

Gefen EXT-DVI-CAT5 Sender Unit

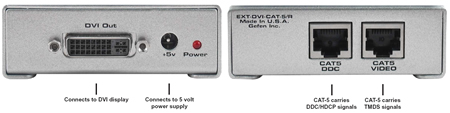

Gefen EXT-DVI-CAT5 Receiver Unit

Gefen EXT-DVI-CAT5 Receiver Unit

How the Gefen EXT-DVI-CAT5 works:

The DVI CAT5 Extender sender unit sits next to your computer, DVD player or any set-top box. The cable supplied with the DVI CAT5 Extender connects your DVI source to the sender. The DVI CAT5 Extender receiver sits next to your DVI display - up to 150 feet away. The display plugs into the back of the DVI CAT5 Extender receiver. Two CAT5 cables* connect the sender and the receiver units to each other.  The DVI CAT5 Extender is HDCP compliant.

* NOTE: A shielded CAT5e or CAT6 cable for video is recommended for optimal video quality. The DDC CAT5 cable does not need to be shielded.

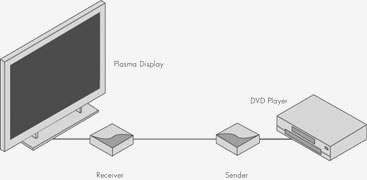

Gefen EXT-DVI-CAT5 Diagram

Gefen EXT-DVI-CAT5 Diagram

Gefen EXT-DVI-CAT5 Features:

  • Extends any DVI compliant device up to 200 feet from the computer at 1280x1024
  • Extends any DVI compliant device up to 150 feet from the computer at 1900x1200
  • Improved compensation for cable skew
  • Uses CAT-5e cable for DDC and control signals
  • Supports resolutions up to 1080p, 2K, and 1920 x 1200
  • Supports DDWG standard for DVI compliant monitors
  • Video is transmitted digitally over the CAT-5e cable for zero signal loss
  • HDCP compliant

Gefen EXT-DVI-CAT5 Package Includes:

  • the DVI CAT5 Extender-S
  • the DVI CAT5 Extender-R
  • One 6 foot DVI cable
  • One 5V Power Supply

Gefen EXT-DVI-CAT5 Specifications:

Mechanical
Height 1.25 in. (3.17 cm.)
Width 3.25 in. (8.25 cm.)
Depth 3.4 in. (8.63 cm.)
Weight 3 lbs. (1.36 kg.)
Power
Supply 5VDC
Consumption 15 Watts (max)
Connectors
Input/Output DVI Connector Molex 24 pin female
Link Connector RJ-45
Input Signal
Video Signal 1.2 volts p-p
DDC Signal: 5 volts p-p (TTL)
Video Amplifier Bandwidth 1.65 GHz
Single Link Range 1080P/1920 x 1200
