Gefen DVI Extender & RS-232 over one fiber optic cable



Recommended replacement: Adder XD150FX-SM
Alternative options: Contact Us

The Gefen EXT-DVI-FO-141 extends DVI and RS232 over fiber optic cable. The Gefen DVI RS232 over Fiber is a perfect solution for extending and managing control systems, touchscreen or digital signage applications at great distances. The DVI RS232 sends DVI, RS232, and IR signals up to 1000 feet using a single CAT5 and single SC fiber. RS232 and IR signals are transmitted over a single CAT5 cable while the DVI signal is transmitted over a single SC fiber.

How It Works
The DVI RS232 over fiber system consists of a Sender and a Receiver unit. The Sender connects to the computer's DVI-compliant video card output, and RS-232 port. The DVI RS232 over fiber Receiver connects to the remote display and RS232 and IR devices. One strand of SC fiber optic cable and a CAT5 cable connects the Sender and Receiver together.

This product is HDCP compliant.

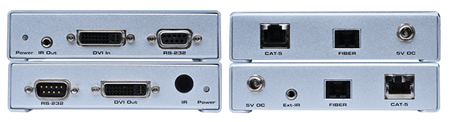

 Gefen EXT-DVI-FO-141 Backview
Gefen EXT-DVI-FO-141 Backview

Package Includes:

  • (1) DVI RS232 Sender
  • (1) DVI RS232 Receiver
  • (1) 6 ft. DVI Cable
  • (1) 6 ft. RS232 Cable
  • (2) 5V DC Power Supplies
  • (1) User's Manual

Gefen EXT-DVI-FO-141 Features:

  • Extends any DVI and RS-232 compliant device up to 1000 feet from the computer
  • Perfect for digital signage applications
  • Video is transmitted digitally over fiber optic cable for zero signal loss
  • Supports resolutions up to 1080p, 2K, and 1920 x 1200
  • Supports DDWG standard for DVI-compliant monitors
  • Supports HDCP for viewing of protected content

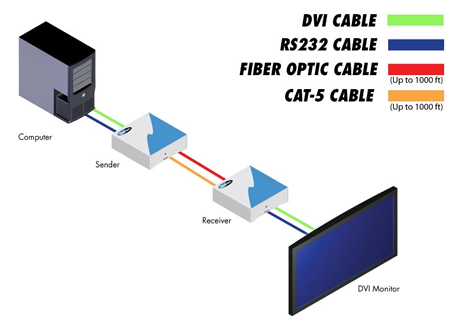

Gefen EXT-DVI-FO-141 Application Diagram
Gefen EXT-DVI-FO-141 Application Diagram

 Gefen EXT-DVI-FO-141 Specifications:

Depth 3.25 in.. (8.3 cm.)
Width 4.6 in. (11.7 cm.)
Height 1.1 in. (2.8 cm.)
Weight 5 lbs. (2.3  kgs.)
Video Amplifier Bandwidth 165 MHz
Input Video Signal 1.2 Volts p-p
Input DDC Signal 5 Volts p-p (TTL)
Single Link Range 1080p/1920 x 1200
DVI I/O Connectors DVI-I (29 pin) female (digital only)
RS232 Input Connector DB-9 female
RS232 Output Connector DB-9 male
Power Supplies 5V DC
Power Consumption 10 Watts (max) each
Link Connector RJ-45
Video Link Connector SC
