Gefen DVI KVM HDBaseT 2.0 Extender

EXT-DVIKA-HBT2

$799.00$557.44
Save $241.56
FREE Shipping on orders over $100

The Gefen EXT-DVIKA-HBT2 DVI KVM HDBaseT 2.0 Extender uses Gefen's implementation of the latest HDBaseT 2.0 technology to extend DVI over a single CAT-5e cable, up to 495 feet (150 meters). The new HDBaseT 2.0 Colligo™ platform provides additional features such as USB and 2-way audio extension, and ensures an even more robust and resilient connection than the industry standard HDBaseT. DVI Resolutions up to 1080p and 1920 x 1200 (WUXGA) are supported. HDMI resolutions up to 4K DCI-Cinema (4096 x 2160 @ 30 Hz 4:4:4) and 4K Ultra HD (3840 x 2160 @ 60 Hz 4:2:0) along with 7.1 channels of LPCM and HBR (High Bit Rate) lossless digital audio are also supported when using Gefen DVI to HDMI cables. Supported HBR formats include Dolby Atmos®, Dolby® TrueHD, DTS:X, and DTS-HD Master Audio. USB, RS-232, and 2-way L/R analog audio can be extended between the Sender and the Receiver to accommodate a complete workstation including keyboard, mouse, select USB periperals, microphone, headphones, and powered speakers. 1U tall, half-rack-width enclosures can be surface-mounted, installed in a standard 19-inch rack using the EXT-RACK-1U-GRY rack tray, or be placed on a shelf.

Video Support
Resolutions up to 4K DCI-Cinema (4096 x 2160 @ 30 Hz 4:4:4) and 4K Ultra HD (3840 x 2160 @ 60 Hz 4:2:0) are supported.. This product is compliant with the latest HDCP 2.2 protocol as well as HDCP 1.4.

Audio Support
Support for 2-way stereo analog audio as well as 7.1 channels of LPCM and HBR (High Bit Rate) lossless digital audio when embedded in HDMI signal using Gefen DVI to HDMI cables.

USB & Serial Extension
This product provides USB and RS-232 extension between the Sender and the Receiver units, facilitating keyboard, mouse, and peripherals functionality for extended workstations, and the control of A/V sources placed near the Sender unit and sending automation commands to the display or another device placed near the Receiver unit.

Power Over HDBaseT
POH (Power Over HDBaseT) technology provides power from the Receiver to the Sender unit, using the same CAT-5 cable that extends the DVI, audio, and control signals. Only the Receiver unit needs an external power supply. The POH standard ensures compatibility with other POH class-compliant devices.

Syner-G™ Support
The Gefen Syner-G software with its powerful EDID Management capabilities speeds up configuration, performs real-time performance analysis via Link Monitoring, and simplifies in-field firmware updates.

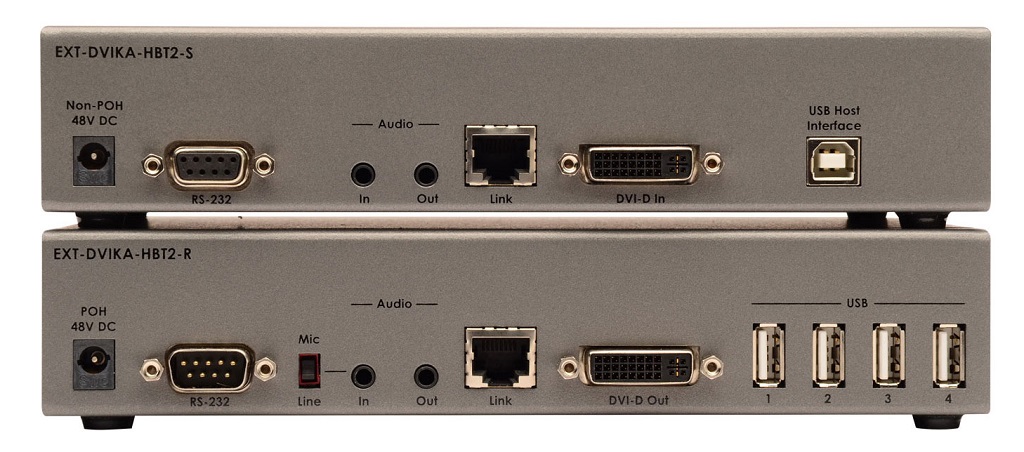

EXT-DVIKA-HBT2 ports on the back
EXT-DVIKA-HBT2 Ports on Back Sides

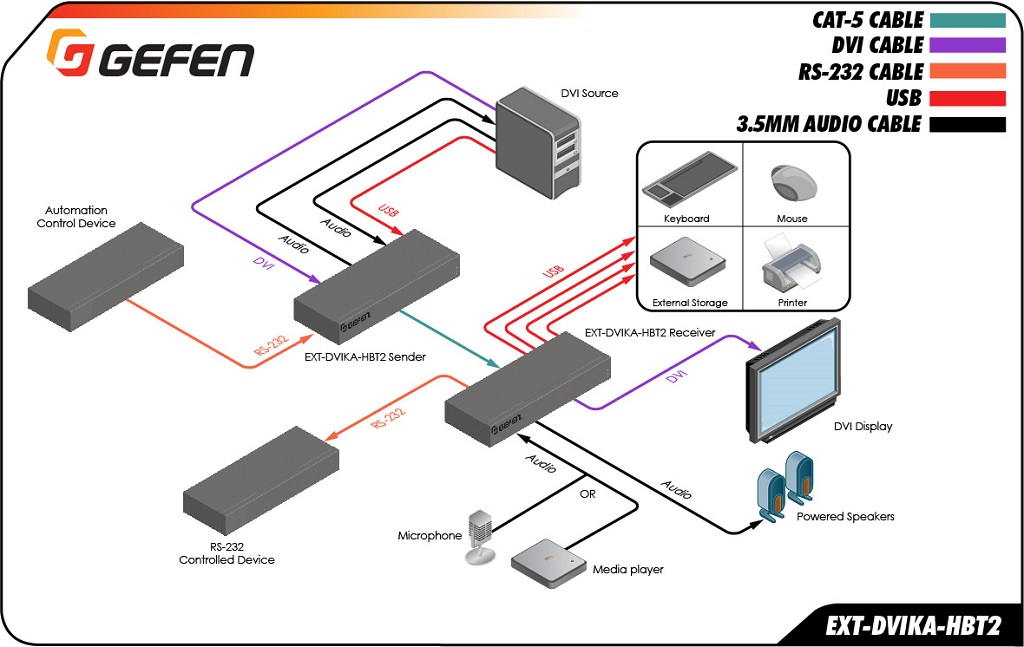

EXT-DVIKA-HBT2 Diagram
EXT-DVIKA-HBT2 Diagram



The Gefen EXT-DVIKA-HBT2 Package Includes:

  • (1) Gefen DEXT-DVIKA-HBT2 - Sender Unit
  • (1) Gefen EXT-DVIKA-HBT2 - Receiver Unit
  • (1) 6 ft. DVI cable (M-M)
  • (2) 6 ft. 3.5mm mini-stereo cable (M-M)
  • (1) 6 ft. Dual-Link DVI cable (M-M)
  • (1) 6 ft. USB Cable (A-B)
  • (4) L-Shaped Surface-Mounting Brackets
  • (1) 48V/1A DC power supply with locking plug
  • (1) Quick-Start Guide

The Gefen EXT-DVIKA-HBT2 Features:

  • Extends DVI, USB, RS-232, and 2-way Audio over a single CAT-5e
    • 1080p Full HD (1920 x 1080 @ 60Hz, 4:4:4, 12-bit), up to 330 feet/100 meters
    • 1080p Full HD (1920 x 1080 @ 60Hz, 4:4:4, 8-bit), up to 495 feet/150 meters
    • WUXGA (1920 x 1200 @ 60Hz, 8-bit), up to 495 feet/150 meters
  • Extends HDMI**, USB, RS-232, and 2-way Audio over a single CAT-5e
    • 4K Ultra HD (3840 x 2160 @ 60Hz, 4:2:0, 8-bit), up to 330 feet/100 meters
    • 4K Ultra HD (3840 x 2160 @ 30Hz, 4:4:4, 8-bit), up to 330 feet/100 meters
    • 4K DCI-Cinema (4096 x 2160 @ 30Hz 4:4:4, 8-bit), up to 330 feet/100 meters
    • 1080p Full HD (1920 x 1080 @ 60Hz, 4:4:4, 12-bit), up to 330 feet/100 meters
    • 1080p Full HD (1920 x 1080 @ 60Hz, 4:4:4, 8-bit), up to 495 feet/150 meters
    • WUXGA (1920 x 1200 @ 60Hz, 8-bit), up to 495 feet/150 meters
  • HDMI Features Supported:
    • HDMI 2.0 up to 4K 60Hz, 4:2:0, 8-bit color
    • HDCP 2.2 and 1.4
    • 12-bit Deep Color
    • LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, DTS:X™, and DTS-HD Master
    • Audio™ pass-through
    • 3DTV pass-through
    • CEC pass-through
    • Lip Sync pass-through
  • Analog L/R Stereo Audio extension from Sender to Receiver and from Receiver to Sender
  • Receiver audio input accommodates a microphone or a line level audio source
  • POH (Power Over HDBaseT™) feature provides power to Sender unit over the link cable - only the Receiver needs external pow
  • Advanced EDID Management via Gefen Syner-G™ software
  • Link Quality Monitoring via Gefen Syner-G™ software
  • In-field firmware update via USB, using Gefen Syner-G™ software
  • Locking power connector
  • 1U tall, half-rack-width enclosures can be:
    • Surface-mounted
    • Installed in a standard 19-inch rack using the EXT-RACK-1U-GRY rack tray (available separately)
    • Placed on a shelf

** for best results, use Gefen DVI to HDMI cables

Gefen EXT-DVIKA-HBT2 Specifications:

Mechanical
Height 3.8  in.
Width 14.3 in.
Depth11.8 in.
Weight5.6 lbs.
Environmental
Operating Temperature32-122 °F (0-50 °C)
Power
Power Supply(Sender / Receiver)48V DC
Power Consumption13 W per unit (max.)
Supported Hardware
Maximum Pixel Clock300 MHz
DVI Connector (Sender / Receiver)DVI-D 29-pin, female
USB Connector (Sender)(1) Type B
USB Connector (Receiver)(4) Type A
Link Connector (Sender / Receiver)(2) RJ-45 (1 per unit)
USB port for Gefen Syner-G™ interface (Sender/Receiver)USB Mini-B



UPC / EAN Barcode icon
UPC 888814983609
EAN 0 888814983609
