Gefen 4x1 DVI KVM Switch



Replaced by: Gefen EXT-DVIKVM-441DL
Alternative options: Contact Us

The Gefen EXT-DVIKVM-441 is a 4x1 DVI KVM Switcher which provides flexibility in integrating cross platform computer equipment easily and without networking. It enables you to switch easily and reliably between any combination of four DVI (digital visual interface) computers using one DVI display.  This DVI KVM switch also supports USB 2.0 for USB keyboard/mouse and other high speed peripherals. Audio is switched for each computer as well, allowing for the creation of multimedia desktop environments, and you can even choose between a Macintosh or PC keyboard/video/mouse combination. Switching can be controlled through either the IR Remote, Front Panel Push Buttons, or the Contact Closure port.

How Gefen EXT-DVIKVM-441 works:

Plug your display, keyboard/mouse and audio peripherals directly into the 4x1 DVI KVM switch's outputs and connect the supplied cables to the four computers you want to control. You then select the computer you want to work on using remote that comes with the unit.

Note: Switching between computers is done from the 4x1 DVI KVM Switcher remotely using the infrared RMT-4IR remote control, front panel push buttons, or the wired RMT-4 remote.

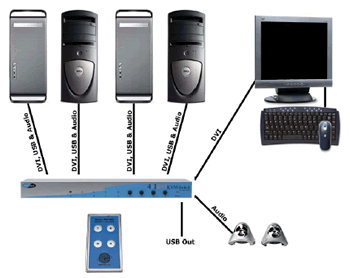

Gefen 4x1 DVI KVM Wiring Diagram
Gefen 4x1 DVI KVM Wiring Diagram

Gefen EXT-DVIKVM-441 Features:

  • Switches easily between any four DVI computers with USB 2.0 and audio
  • Maintains highest resolution single link video
  • Saves space on your desktop
  • Use either PC or Mac USB keyboard/mouse
  • Discrete IR remote (included)
  • Contact closure remote control option (RMT-4)
  • Supports resolutions up to 1080p and 1920x1200
  • Supports DDWG standards for DVI monitors
  • Includes rack ears

Gefen EXT-DVIKVM-441 Package Includes:

  • 4x1 DVI KVM Switcher
  • Four 6' DVI Cables (m-m)
  • Four 6' USB cables (A-B)
  • Four 6' Audio cables
  • 5V power supply
  • RMT-4IR Remote Control
  • Rack Ears

Gefen EXT-DVIKVM-441 Specifications:

Height 1.75 in. (4.44 cm.)
Width 17 in. (43.18 cm.)
Depth 4.375 in. (11.11 cm.)
Weight 9 lbs. (4 kg.)
Rackmountable 1U Rack Space
Supply 5V DC
Consumption 20 watts (max)
Input Signal
Video 1.2 volts p-p
DDC 5 volts p-p (TTL)
USB Input type "B"
USB Output type "A"
Audio Connector 3.5mm mini Stereo
DVI Connector DVI-I 29 pin female (digital only)
Video Amplifier Bandwidth 1.65 Gbps
Single Link Range 1080p/1920 x 1200
