Gefen DVI RS232 Extender N

EXT-DVIRS232-CAT5N

$599.00

Discontinued
Recommended replacement: SmartAVI DVX-MULTI
Alternative options: Contact Us

The Gefen EXT-DVIRS232-CAT5N extends DVI and RS-232 up to 300 feet. The DVI extender sends hi-def video and RS232 signals over two economical CAT5 cables, up to 300 feet away. This distance is guaranteed to give you a reliable method of all-digital extension while streamlining your installation cabling needs.

You connect the DVI RS232 Extender sender unit to your DVI and RS232 source using the supplied cables. Your DVI display, monitor or touch screen plugs into the DVI RS-232 Extender's receiver unit - up to 300 feet away. Two CAT-5 cables connect the sender and the receiver units to each other, linking local and remote locations.

Note: The DVI RS232 Extender is HDCP compliant.

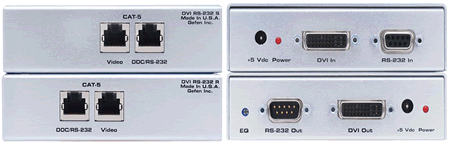

Gefen DVI RS232 Extender Backview

Gefen DVI RS232 Extender Backview

Gefen EXT-DVIRS232-CAT5N Features:

  • Extends any DVI & RS232 compliant device up to 300 feet from the computer
  • Uses one CAT-5e cable for DDC and control signals
  • Perfect for digital signage applications
  • Video is transmitted digitally over CAT-5e cable for zero signal loss
  • Supports resolutions up to 1080p, 2K, and 1920 x 1200
  • 300 ft extension at 1280x1024/1080i
  • 150 ft extension at 1920x1200/1080p
  • Supports DDWG standard for DVI-compliant monitors
  • Conforms to RS-232C standards
  • HDCP compliant

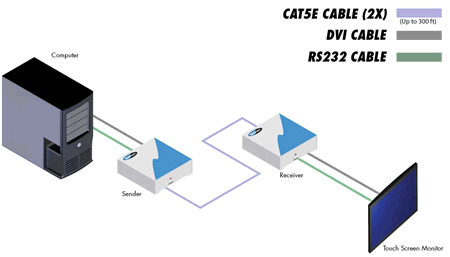

Gefen DVI RS232 Extender Application Diagram

Gefen DVI RS232 Extender Application Diagram

Package Includes:

  • (1) DVI RS232 Extender Sender unit
  • (1) DVI RS232 Extender Receiver unit
  • (1) DVI Cable
  • (1) 6 ft. RS232 Cable
  • (2) 5V Power Supplies
  • (1) User's Manual

Gefen EXT-DVIRS232-CAT5N Specifications:

Mechanical
Height 1.25 in. (3.20 cm.)
Width 4.6 in. (11.7 cm.)
Depth 3.25 in. (8.30 cm.)
Weight 4 lbs. (2 kg.)
Power Supply 5V DC / 10W max. power consumption (each)
Video Amplifier Bandwidth 165 MHz
Input Signal
Input Video Signal 1.2 volts p-p
Input DDC Signal 5 volts p-p (TTL)
Single Link Range 1080p/1920 x 1200
Connectors
DVI Connector DVI-I (29 pin) female (digital only)
Link Connector RJ-45 Shielded
RS232 Connectors
Input Connector DB-9 female
Output Connector DB-9 male
