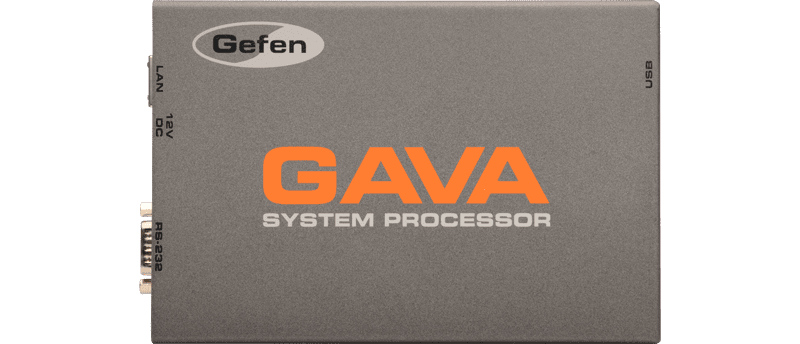

Gefen Audio/Video Automation System Processor



For upgrade or replacement options: Contact Us

The Gefen EXT-GAVA Audio / Video Automation System is a new way to control your home, office, conference room, or commercial facilities.

This new system works in conjunction with the Gefen PACS (Professional Automation Control System) and Mini-PACS products to control all key audio/video features in a home or commercial environment, as well as automation of lighting, temperature, window shades and more over the local area network.

In a typical home entertainment scenario, users have multiple sources, such as Blu-ray players, iTunes, satellite or cable set-top boxes, and more, all connected in a system integrated with one or more displays in one or more rooms.

A single Gefen GAVA System Controller allows multiple users to control equipment in multiple rooms simultaneously, in full synchronization with two-way feedback.

An Innovative System

What makes the Gefen GAVA System unique is its ability to control applications on a home or business network rather than on a stand-alone controller with dedicated cabling. This makes it ideal for retrofit or distributed systems.

Not only that, the  EXT-GAVA has the ability to connect over your network with computers (Mac or PC) running iTunes, with display of Cover Art and song metadata.

The GAVA automation system processor is specifically designed to allow control through a browser interface that works with all smartphones and tablets today. It is optimized for the iPad, iPod touch, and Android tablets, as well as other smartphones and tablets with a Web browser.

 EXT-GAVA is designed for quick installation- only a single cable is needed, and the Configuration Wizard allows a system to be installed and configured in less than half an hour!

Gefen EXT-GAVA Features and Benefits:

  • Integrated HTML5 Web Server supports any smartphone, tablet or Web browser
  • Intuitive Graphical User Interface (GUI)
  • Local low-power Linux processor contains system controllers, device interface codes, and a Web server
  • Easy Wizard setup with no programming required
  • Simple configuration interface using any Web browser
  • Directly controls Gefen IP-controlled devices and other selected IP devices
  • Offers control (through EXT-PACS or GTB-MINI-PACS) of any IR and RS-232-controlled devices, and trigger contacts.
  • Fan-less, silent, low-power processor may be placed anywhere
  • Full two-way control of RS-232 and IP devices
  • 2-way IP interface with computers running iTunes (PC or Mac) with song data and cover art
  • 2-way IP interface with Apple TV (Model 2 or 3) with song data and cover art
  • One or more PACS or Mini PACS controllers may be located anywhere on the Network
  • Offers Lutron RadioRA2, Lutron HomeWorksQS, and KNX interfaces for lighting, appliance control, and more
  • Z-Wave and other lighting and appliance interfaces coming soon
  • Live secure online support through VPN connection
  • Extensive Library of video and audio devices included
  • No Internet access required for operation (except for software updates and live support)
  • Supports UPnP IP devices

Gefen EXT-GAVA Diagram
Gefen EXT-GAVA Audio/Video Automation System Processor Diagram

Gefen EXT-GAVA Package Contents:

  • 1 EXT-GAVA Audio/Video Automation System Processor
  • 1 3 ft. CAT-5 cable
  • 1 12V DC power supply
  • 1 AC power cord
  • 1 Quick-Start Guide

Gefen EXT-GAVA Specifications:

Width 4.2 in
Height1.2 in.
Depth6.4 in
Weight1 lb
Operating Temperature32-104 F (0-40 C)
Control Ports
USB2 x Type B
RS-232DB-9, male
Power Input12 V / 1.2A DC
Power Consumption2.5W (idle) / 25W (max.)
