Gefen Full-featured, Low Cost Digital Signage Media Player



Recommended replacement: SmartAVI SignagePro 16GB
Alternative options: Contact Us

The Gefen EXT-HD-DSMP HD Digital Signage Media Player provides an effective means to playback and schedule digital signage content on both digital and analog connections. By connecting the HD Digital Signage Media Player to a network, content can be pushed to the box using a computer and FTP client program. When a more elaborate setup is required, a number of units can be installed to pull content from a local or external FTP server based on a schedule. The HD Digital Signage Media Player acts as both an FTP client and server with live logging of various important statistics, such as playback, system status, and uploaded content. The HD Digital Signage Media Player provides an intuitive directory and file structure that can easily be created and maintained by any text-based editing program. This allows you to concentrate on the important task of content creation. For precise time synchronization, the HD Digital Signage Media Player can be set up to access an external NTP server. Many audio and video file formats are supported with NTSC and PAL output resolutions up to 1080p Full HD. HDMI, Composite, and Component outputs with separate analog and digital audio outputs provide flexibility when connecting to various displays. Two USB 2.0 ports provide connection to the included USB flash drive or to an external hard drive. The HD Digital Signage Media Player enclosure features integrated mounting brackets for a secure installation on any flat surface or directly to the back of the display. For complete management of multiple devices in multiple locations, Gefen provides a CMS (Content Management Software) solution which can be run in a virtual environment. The Gefen CMS will allow you to easily manage all of your units in the field from any compatible browser with access to logs, schedules, content, and playlists.

How It Works

The Gefen EXT-HD-DSMP HD Digital Signage Media Player can connect to a display using either analog or digital video connectors. Connect an HDMI, Component, or Composite cable between the HD Digital Signage Media Player and the display. If using the networking capabilities of the HD Digital Signage Media Player, connect your network cable to the Ethernet port. Optionally, the digital or analog audio output connector can be used to connect the HD Digital Signage Media Player to an external audio processor or amplifier. Connect the included USB flash drive to the rear panel of the unit. Connect the 12 V DC power supply to the unit and connect the AC power cord to an available electrical outlet.

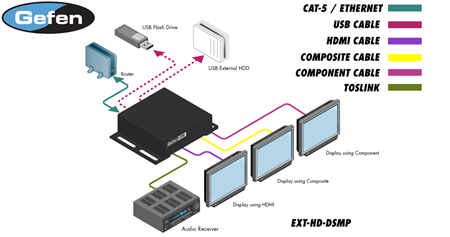

Gefen Diagram
Gefen EXT-HD-DSMP HD Connection Diagram

Gefen EXT-HD-DSMP Package Includes:

  • (1) Gefen HD Digital Signage Media Player
  • (1) USB Flash Drive
  • (1) 6 ft. HDMI locking cable (M-M)
  • (1) IR Remote Control Unit
  • (1) 12 V DC Power Supply
  • (1) User Manual

Gefen EXT-HD-DSMP Features:

  • Supports resolutions up to 1080p Full HD
  • HDMI, Component, and Composite A/V outputs active simultaeously
  • Text-based scheduling and playlist using a text editor
  • CMS for multiple units
  • Supports MPEG 1/2/4, DivX 3/4/5/6, XVid, and H.264/AVC video codecs
  • Supports MP3, MPEG, WMA, PCM, LPCM, ADPCM, FLAC, WAV, AAC, OGG, and MKA audio formats
  • Supports HD JPEG, GIF, PNG, BMP, TIF, and TIFF image formats
  • Wall-mountable enclosure for excellent heat dissipation and durability
  • Integrated OSD Menu for device configuration
  • Built-in FTP server and client to push and pull content
  • Full media scheduling and accounting logs
  • NTP client for time synchronization
  • USB 2.0 ports used for storage
  • Programmable PIN code prevents unauthorized access to OSD
  • Compatible file systems: NTFS, FAT16/FAT32, EXT3, and HFS+
  • IR remote control unit

Gefen EXT-HD-DSMP Specifications:

Height 1.6 in. (4.06 cm.)
Width 8.4 in. (21.33 cm.)
Depth 5.1 in. (12.95 cm.)
Weight 3.5 lbs. (1.58 kg.)
Operating Temperature 32-104 °F (0-40 °C)
Power Supply 12V DC, 3A
Power Consumption 10 W (max.)
Supported Hardware
HDMI Connector (1) Type A, 19-pin, female
Analog Video Output Connector
(1) Component, RCA-type
Analog Video Output Connector (1) Composite, RCA-type
Analog Audio Output Connector (1) L/R, RCA-type
Digital Audio Output Connector TOSLINK
Ethernet Connector RJ-45 (10/100Mbps)
USB Output Connectors (2) USB 2.0, type A
Approved Agency HDMI, 1080P Progressive


UPC / EAN Barcode icon
UPC 845344099613
EAN 0845344099613
