Gefen Digital Signage player with Wi-Fi Plus



Recommended replacement: SmartAVI SignagePro 16GB
Alternative options: Contact Us

The Gefen EXT-HD-DSWFPN Digital Signage Player with Wi-Fi Plus is the industry's first media appliance to combine the power of HTML5 with the interoperability of SMIL. The EXT-HD-DSWFPN Digital Signage Player is a LAN-based product, which supports 1080p Full HD, text tickers, 2-channel L/R audio and calendar scheduling with over ten preloaded templates to choose from, as well as supporting live video input and select* RS-232 ON/OFF commands.

The all-metal enclosure features a passive cooling system. The Digital Signage Player comes with 4 GB of built-in flash memory and the securable compact flash card slot allows the addition of up to 16 GB of memory if needed (replacing the internal storage). Two integrated USB 2.0 ports provide connection to a keyboard and USB storage devices. Support for over 20 different media formats provides a wide selection for content creation. A watchdog timer lets the product recover and resume playback after power and network disruptions.

The included software allows users to upload video playback schedules and playlists for easy content management. Additionally, software developers can utilize W3C SMIL (Synchronized Multimedia Integration Language) syntax which ensures compatibility across multiple Digital Signage platforms. The included software features over ten different multi-zoned templates and 'live feed' widgets to fit your specific Digital Signage needs.

How It Works:

The EXT-HD-DSWFPN Digital Signage Player with Wi-Fi connects to a display using analog (Composite / Component / VGA) or an HDMI cable. There are two options for connecting to the network: Connect an Ethernet cable to the network or connect using Wi-Fi. Then, connect a keyboard and peripherals to the USB ports to configure the unit. Use the included Composite A/V cables to connect the product to the 3.5 mm connector. Use the included composite input cable and 232 dongle then connect the 12V DC power supply to the unit and connect the AC power cord to an available electrical outlet.

Gefen EXT-DP-144 Features and Benefits:

  • Supports HD resolutions up to 1080p Full HD
  • Supports MPEG-1, MPEG-2, MPEG L2, MP3, H.264/MPEG-4 and VC-1 codec formats
  • 4 GB of built-in memory (expandable)
  • Dynamic content support for SMIL 3.0 (sub-set)
  • CMS device management in LAN or WAN environments is possible using 3rd party solutions which are compliant with the SMIL protocol
  • NTP client for time synchronization
  • Real-time clock with battery backup
  • Automatic error recovery with built-in WDT
  • Auto-play starts playing scheduled contents automatically
  • Compact and wall-mountable solid metal enclosure for excellent heat dissipation and durability
  • Access to dynamic content via HTML5 widgets (RSS feeds, news, Twitter, websites, calendars, weather and live clocks
  • 13 base templates and 7 widget templates

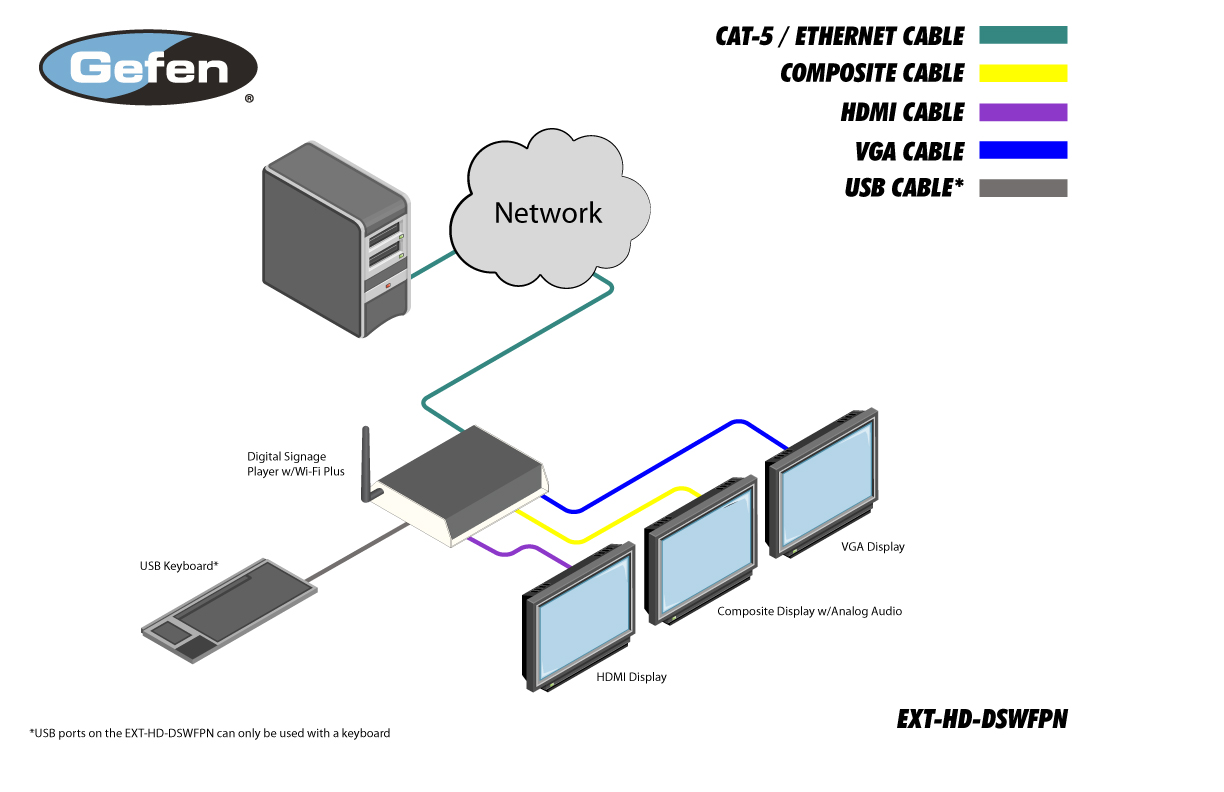

Gefen EXT-HD-DSWFPN Diagram
Gefen EXT-HD-DSWFPN Digital Signage Player Diagram

Gefen EXT-HD-DSWFPN Package Contents:

  • 1 EXT-HD-DSWFPN Digital Signage Player
  • 1 Wi-Fi antenna
  • 1 Ethernet cable
  • 1 3.5mm to Composite A/V cable
  • 1 RS-232 adapter (RJ-11 to DB-9)
  • 1 x 12V DC power supply
  • 1 x AC power cord
  • 1 x Quick Start Guide

Gefen EXT-HD-DSWFPN Specifications:

Width 6.0 in. (152 mm.)
Height1.2 in. (30 mm.)
Depth4.4 in. (118 mm.)
Weight1 lbs. (0.45 kg)
Power Supply12V DC
Power Consumption10 W (max.)
Video Input1 x 3.5mm mini-stereo (Composite A/V)
Video Output1 x HDMI Type A, 19-pin, female;
1 x VGA, HD-15, female
USB (2.0)2 x Type A, female
Ethernet1 x RJ-45
RS-2321 x RJ-11
Compact Flash Slot16 GB (max.)
Video Output1 x HDMI Type A, 19-pin, female;
1 x VGA, HD-15, female
Maximum Pixel Clock225 MHz
Link Indicator1 x LED, green
Power Indicator1 x LED, blue
Operating Temperature32 - 104 °F (0 to + 40 °C)
Wi-Fi Signal802.11 b/g/n
Wi-Fi SecurityWPA/WPA2, TKIP / AES
Supported Formats
Resolution (max.)1080p Full HD

This item is the replacement for the discontinued EXT-HD-DSWFP.
