Gefen 1x8 HDMI Distribution Amplifier

EXT-HDMI-148

$899.00

Discontinued
Recommended replacement: Gefen GTB-HD4K2K-148C-BLK
Alternative options: Contact Us

The Gefen EXT-HDMI-148  is a 1:8 HDMI Distribution Amplifier which allows you to send one source of digital high definition video to multiple displays at the same time. It supports all HDMI equipment, such as DVD players and satellite set top boxes and all HDMI displays. HDMI (High-Definition Multimedia Interface) is a digital point to point interface for audio and video signals. In operation, the digital video source is connected to the distribution amplifier on one side. On the other side, eight HDMI outputs are available to be used in part or in full. Once the unit is connected and powered, your source is routed to up to eight digital displays at the same time.  This HDMI product supports BOTH Audio and Video signals.

For home theater applications, this distribution amplifier is HDCP (high bandwidth digital content protection) compliant, making it effective for use with all HDMI displays. HDCP is a standard "key" encoded into the HDMI signal to prevent video data from being pirated. HDCP was strongly endorsed by the entertainment industry. If a source device is HDCP coded and is connected to a HDMI display or projector via HDMI without the proper HDCP decoding mechanism, the picture is relegated to "snow" or in some cases, a very low (480P) resolution. In order to see protected content, the source, the display and any device in between must be equipped with HDMI connections that can enable HDCP using "software key" decoding.

Gefen HDMI Distribution Amplifier Backside
Gefen HDMI Distribution Amplifier Backside

How Gefen HDMI Distribution Amplifier works:

Connect your HDMI video source to the distribution amplifier's input using the supplied HDMI cable. Then connect up to eight HDMI displays to the unit's eight HDMI outputs. Once connected and powered, your source will be seen on all eight displays at the same time.

Note: HDMI output 1 is the primary connection and is used for the main display. HDMI output 2 through 8 follow the main display. The HDMI displays attached to the 1:8 HDMI Distribution Amplifier MUST have the same native resolution in order to get a picture.

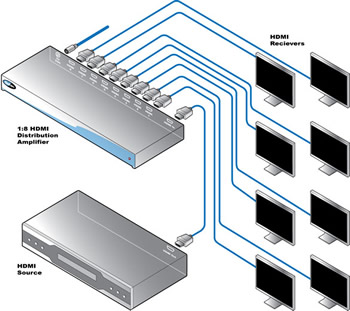

Gefen 1x8 Distribution Amplifier Functional Diagram
Gefen 1x8 Distribution Amplifier Functional Diagram

Gefen EXT-HDMI-148 Features:

  • Connects up to eight HDMIª/DVI displays at the same time to one video source
  • Allows simultaneous display
  • Maintains high resolution video - beautiful, sharp HDTV resolutions up to 1080p, 2k, and computer resolutions up to 1920 x 1200 are easily achieved
  • HDMI compliant
  • HDCP compliant
  • Includes rack ears

Gefen EXT-HDMI-148 Package Includes:

  • 1:8 HDMI Distribution Amplifier
  • One 6 foot HDMI cable
  • 24V External Power Supply
  • Rack Ears

Gefen EXT-HDMI-148 Specifications:

Mechanical
Height 1.75 in. (4.44 cm.)
Width 17 in. (43 cm.)
Depth 5.5 in. (13.9 cm.)
Weight 8 lbs. (3.6 kg.)
Rack Space 1U
Power
Consumption 60 watts (max)
Supply 24V DC
Input Signal
Video 1.2 volts p-p
DDC 5 volts p-p (TTL)
HDMI Connector type A 19 pin female
Video Amplifier Bandwidth 1.65 Gbps
Single Link Range 1080p/1920 x 1200
