Gefen 6x2 HDMI Switcher

EXT-HDMI-642

$899.00

Discontinued
Recommended replacement: Gefen GTB-HD4K2K-642-BLK
Alternative options: Contact Us

Connect and Access One of Multiple Sources from the Same Display(s)

Gefen's 6x2 HDMI Switcher (EXT-HDMI-642) is a small metallic unit equipped with six HDMI inputs and two HDMI outputs. Six inputs accommodate the simultaneous connection of up to six high definition video sources, such as satellite systems and HD DVD players. Two outputs send the high definition audio/video signals to two high definition displays or one display and one audio receiver. Digital audio and high definition video for each source is accessed immediately when the unit "switches" to it. You control the switching by using the IR remote that comes with the unit.

This HDMI product supports BOTH Audio and Video signals.

Fully HDCP Compliant

HDCP (high bandwidth digital content protection) is a standard encoded into the video signal to prevent it from being pirated. If a source device is HDCP coded and is connected to a display or projector without the proper decoding mechanism, the picture is relegated to "snow" or in some cases, very low (480P) resolutions of the images. In order to see high resolution digital video with HDCP compliance, both the source, the display and anything in between must be equipped with HDMI connections that can enable HDCP decoding, such as the Gefen's 6x2 HDMI Switcher (EXT-HDMI-642).

How it Works

You simply connect all your sources to the Switcher's inputs. You have a choice of connecting either two displays or a display and a receiver to the Switcher's outputs. Once the sources, the Switcher and the display(s) are powered and connected, you simply select which source you want to view using the IR remote.

Gefen's 6x2 HDMI Switcher (EXT-HDMI-642)

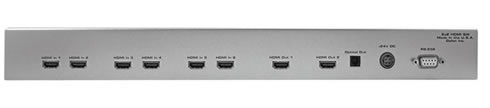

Gefen 6x2 HDMI Switcher (Rear View)

Features

  • Switch easily between any six HDMI sources
  • Outputs are mirrored to two HDMI displays
  • Maintains 480p, 720p, 1080i, and 1080p resolutions
  • Additional digital optical audio output extracted from HDMI input for easy connection to multi-channel audio receivers
  • Maintains high resolution video - beautiful HDTV resolutions up to 1080p are easily achieved
  • Discrete IR remote (included); RS232 controllable
  • Fully HDMI 1.2 compliant
  • HDCP compliant
  • Easy to install and simple to operate


Specifications

Video Amplifier Bandwidth1.65 Gbps
Input Video Signal1.2 volts p-p
Input DDC Signal5 volts p-p (TTL)
Single Link Range1080p/1920x1200
HDMI ConnectorType A19pin female
Digital Audio OutputTOSlink
Remote Control PortRS232, mini-stereo
Power Supply24VDC
Power Consumption60 watts (max)
Dimensions17"W x 1.75"H x 5.875"D


Package Includes

The 6x2 HDMI Switcher
RMT-6IR Remote control
Rack Ears
Six 6-foot HDMI cables
24VDC power supply
User's Manual
