Gefen 1:2 Splitter for HDMI 1.3

EXT-HDMI1.3-142

$289.00

Discontinued
Replaced by: Gefen EXT-HDMI1.3-142D
Alternative options: Contact Us

The Gefen EXT-HDMI1.3-142 is a 1:2 Splitter for HDMI 1.3 which allows set-top boxes, DVD players, DVRs and other HDTV devices with an HDMI 1.3 output to be connected to two HDTV displays. A greater number of displays can be connected by chaining multiple splitters together to create a larger distribution.

How the EXT-HDMI1.3-142 works:
The 1:2 Splitter for HDMI 1.3 is connected using an HDMI cable from the HDMI 1.3 video source to the input of the 1:2 Splitter. There are two HDMI 1.3 outputs from the Splitter to the HD Displays. Once all connections are made, power-cycle all equipment and you will see beautiful, sharp HDMI 1.3 video on all of your High-Definition displays.

Note: Display Output 1 is connected to the Primary Display, from which the resolution and device capability information (EDID) is obtained. All other displays on the other outputs must be capable of the same resolution(s) being shown on the Primary Display, or they may not show a picture. DVI video may be input to the Splitter (and output to a DVI-compatible display device) with an optional DVI-to-HDMI adapter cable.

Gefen EXT-HDMI1.3-142 Back
Gefen EXT-HDMI1.3-142 Back

HDMI 1.3 Features Supported:

  • Lip-Sync Pass Through
  • 225 MHz (up to 12 bit YUV 444 @ 1080p)
  • Deep Color Supported (XV Color)
  • Color Space Conversion
  • Dolby TrueHD & DTS Master
  • CEC Pass Through

Gefen EXT-HDMI1.3-142 Features:

  • Connects two HDMI/DVI displays simultaneously to the same video source
  • Easily maintains beautiful, sharp high resolution video up to 1080p (HDTV), 2K (HD displays) and 1920x1200 (WUXGA).
  • HDMI and HDCP compliant

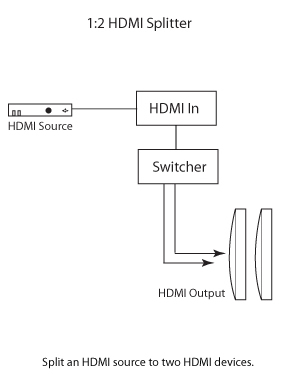

Gefen 1:2 Splitter for HDMI 1.3 Wiring Diagram
Gefen 1:2 Splitter for HDMI 1.3 Wiring Diagram

EXT-HDMI1.3-142 Package Includes:

  • (1) Gefen 1:2 Splitter for HDMI 1.3
  • (1) 5V DC Power Supply
  • (1) 6-ft cable
  • (1) User's Manual

Gefen EXT-HDMI1.3-142 Specifications:

Mechanical
Height 1 in. (2.5 cm.)
Width 10.25 in. (26.04 cm.)
Depth 4.25 in. (10.80 cm.)
Ship Weight 4 lbs. (2 kg.)
Power
Power Supply 5V DC
Power Consumption 10 Watts (max.)
Input Signal
Input Video Signal  1.2 Volts p-p
Input DDC Signal 5 Volts p-p (TTL)
Video Amplifier Bandwidth 225 MHz
Single Link Range 1080P/1920 x 1200
HDMI Connector Type A, 19-pin Female
