Gefen Extender for HDMI 1.3 over one CAT-6 cable

EXT-HDMI1.3-1CAT6

$599.00

Discontinued
Replaced by: Gefen GTB-HDBT-POL-BLK
Alternative options: Contact Us

The Gefen EXT-HDMI1.3-1CAT6 extends HDMI 1.3 over one CAT-6 cable. The Gefen Extender for HDMI 1.3 over one CAT6 will send a 1080p@60Hz HDMI 1.3 signal, with Deep Color support, over a single CAT-6a cable to distances of up to 175 feet (50m). HDMI 1.2 is still fully supported and can be extended up to 200 feet (60m). Extension of high definition can now be simplified with the use of only a single CAT-6a cable. Previous solutions used 2 cables to accomplish this. The Gefen Extender for HDMI 1.3 over one CAT6 supports the HDMI 1.3 specification with features such as Deep Color, Full 1080p HD and compressed lossless audio formats such as Dolby TrueHD and DTS-HD Master Audio. The CAT6 extender's pure digital transmission method insures 100% signal integrity over a single cable extension solution.

How It Works
The Gefen Extender for HDMI 1.3 over one CAT6 system consists of send and receive units. The HDMI source (set-top box, DVD player, or gaming console) connects to the sender unit with the supplied 6-foot HDMI cable. The receiver unit connects to an HDTV display. One CAT-6a cable links the sender and receiver together at up to 200 feet apart. Power is applied to both the sender and receiver with the included 5V DC power supplies. A perfect image is now displayed on the remote HDTV display.

*Note: This device is an HDCP pass-through device.

HDMI 1.3 Features Supported:

  • Dolby TrueHD & DTS-HD Master Audio
  • Deep Color Supported (x.v.Color)
  • 225 MHz (up to 12 bit YUV 444 @ 1080p)
  • CEC Protocol Pass-Through
  • Lip-Sync Pass-Through

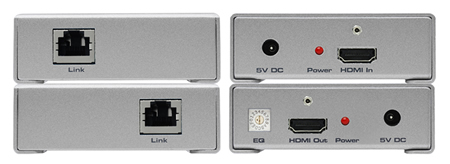

 Gefen EXT-HDMI1.3-1CAT6 Backview
Gefen EXT-HDMI1.3-1CAT6 Backview


Package Includes:

  • (1) Extender for HDMI1.3 over one CAT6 Sender
  • (1) Extender for HDMI1.3 over one CAT6 Receiver
  • (2) 5V DC Power Supplies
  • (1) User's Manual
  • (1) Set of Wall Mounting Plates


Gefen EXT-HDMI1.3-1CAT6 Features:

  • Flexible extension of high-bandwidth HDMI 1.3 over a single CAT6a cable
  • Audio and video are transmitted digitally over one CAT6a cable for zero signal loss
  • Single Link Range: 1080p@60 Hz, 12 bit color depth, 1920x1200
  • Compliant with HDMI 1.3, HDMI 1.2, HDCP 1.1 and DVI 1.1 standards
  • Supports digital video formats in Deep Color Mode at up to 12bits/color
  • Supports lossless compressed digital audio (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio)
  • Equalizes HDMI signal and retransmits it with optimal quality regardless of incoming signal quality
  • Eliminates equipment noise in the viewing environment
  • Improved compensation for cable skew

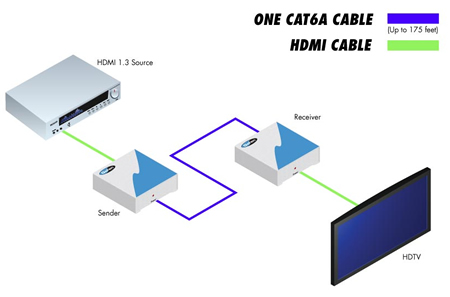

Gefen EXT-HDMI1.3-1CAT6 Application Diagram
Gefen EXT-HDMI1.3-1CAT6 Application Diagram


 Gefen EXT-HDMI1.3-1CAT6 Specifications:

Mechanical
Depth 1.0 in.. (2.5 cm.)
Width 2.0 in. (5.1 cm.)
Height 1.0 in. (2.5 cm.)
Weight  3 lbs. (1.4 kg.)
Video Amp. Bandwidth 225 MHz
Single Link Range 1080@60, 12 bit color depth, 1920x1200 max. res
Input DDC Signal 5 Volts p-p (TTL)
Input Video Signal: 1.2 Volts p-p
HDMI Connector Type A, 19 Pin Female
Link Connector RJ-45 Shielded
Power Supply (2) 5V DC Power Supplies, 10W power consumption each
UPC / EAN Barcode icon
UPC 845344050775
EAN 0845344050775
