4x2 Switcher for HDMI 1.3

EXT-HDMI1.3-442

$549.00

Discontinued
Replaced by: Gefen GTB-HD4K2K-442-BLK
Alternative options: Contact Us

 4 Sources + 2 Displays + HDMI 1.3 Connectivity = Greater Integration
Options Gefen's 4x2 Switcher for HDMI 1.3 has four HDMI inputs and two HDMI outputs. Up to four HD audio/video sources are connected at one time to the HDMI inputs such as satellite systems and Blu-Ray players. Two mirrored HDMI outputs send HD audio/video signals to two HDTV displays simultaneously. A convenient S/PDIF digital audio out allows connection to an external audio video receiver if desired. Switching is done via the included IR remote.

 Connect four HD audio/video sources to the 4x2 Switcher for HDMI 1.3's inputs. Connect two displays to the HDMI outputs. An external amplifier or receiver can be connected to the S/PDIF digital audio output on the rear of the switcher if desired. Once the sources, the switcher and the displays are powered and connected, select which source to view of four using the IR remote.

 S/PDIF Audio Formats Supported:
Dolby AC3 2-channel and 5.1-ch digital audio
LPCM 2-ch digital audio (32-192 KHz sampling rate)
Dolby Digital Plus 5.1-ch digital audio
DTS 2-ch and 5.1-ch digital audio
HDMI 1.3 Features Supported:
Lip Sync Pass-Through
225 MHz (up to 12 bit YUV 444 @ 1080p)
Deep Color
x.v.Color
Color Space Conversion
Dolby TrueHD & DTS Master
CEC Pass-Through

 Features:

  • Switch easily between any four HDMI/DVI sources
  • Outputs are mirrored to two HDMI/DVI displays simultaneously
  • Maintains high resolution video - beautiful, sharp HDTV resolutions up to 1080p, 2k, and computer resolutions up to 1920 x 1200 are easily achieved
  • Discrete four button IR remote (included)
  • HDMI and HDCP compliant

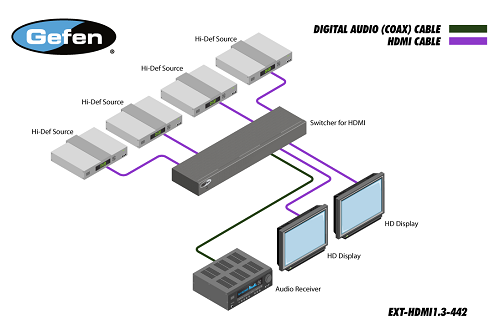

Diagram

diagram

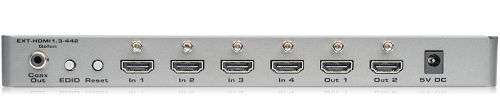

back



Specifications:

  • Video Amplifier Bandwidth: 225 MHz
  • Input Video Signal: 1.2 Volts p-p
  • Input DDC Signal: 5 Volts p-p (TTL)
  • Supported Resolutions: 1080p/60 12 bit color depth, 1920x1200
  • HDMI Connector: Type A 19 pin female
  • Audio Output Connector: S/PDIF
  • Power Supply: 5V DC
  • Power Consumption: 13W (max)
  • Dimensions: 12" W x 1.2" H x 4.2" D
  • Shipping Weight: 6 lbs.
