Gefen 1:4 HD-SDI Distribution Amplifier

EXT-HDSDI-144

$1,299.00

Discontinued
Recommended replacement: Aten VS146
Alternative options: Contact Us

The Gefen EXT-HDSDI-144 is a 1:4 HD-SDI Distribution Amplifier which is a video splitting device that allows a single SDI video source to send data to four HD-SDI displays at the same time. Crisp, highly defined visuals are generated for each distributed output, and multiple formats (NTSC, PAL) plus high definition video resolutions (720 to 1080p) are fully supported.  Connect your source to the Splitter's HD SDI input, then connect your four displays to the Splitter's HD SDI outputs. Once the source, the displays and the Splitter are powered and connected, your source's video appears on all four displays simultaneously.

What is SDI?
SDI (serial digital interface), used primarily in broadcasting, converts and transmits digital video through SDI connectors. It processes high quality standard or high definition video.

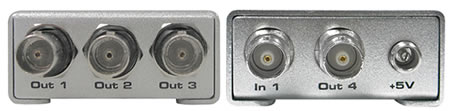

Gefen HD-SDI Distribution Amplifier Side Views
Gefen HD-SDI Distribution Amplifier Side Views

Gefen HD-SDI Distribution Amplifier Features:

  • Easily distribute one HD-SDI source to four HD-SDI displays
  • Streamlines equipment as unnecessary hardware is eliminated
  • Distributes video instantaneously
  • Supports NTSC & PAL formats

EXT-HDSDI-144 Package Includes:

  • 1:4 HD-SDI Distribution Amplifier
  • One 5v Power Supply

Gefen EXT-HDSDI-144 Specifications:

Mechanical
Height 1 in. (2.54 cm.)
Width 5 in. (13 cm.)
Depth 2.125 in. (5.396 cm.)
Shipping Weight 4 lbs. (2 kg.)
Power
Supply 5V DC
Consumption 10 watts (max)
Input/Output SDI - SMPTE 259M-C (270Mbps);HD-SDI -SMPTE 292M (1.485, 1.485/1.001 Gbps)
Resolution 720p @ 60, 59.94, 50Hz
1080p @ 30, 29.97, 25, 24 & 23.98Hz
1080i @ 60, 59.94, 50, 48 & 47.95Hz
