Gefen 2x1 HDTV Switcher

EXT-HDTV-241

$249.00

Discontinued
Replaced by: Gefen EXT-HDTV-241N
Alternative options: Contact Us

2 HDTV Sources + 1 HDTV Display = High Definition Convenience and Ease

The Gefen 2x1 HDTV Switcher (EXT-HDTV-241) enables effortless HDTV source switching using a single high definition display. A simple and reliable solution, the 2x1 HDTV Switcher links any two HDTV sources (DVD players and satellite set tops) to one HDTV display. It completely eliminates the need to disconnect then reconnect multiple HDTV sources, saving time by providing a fundamental tool that brings it all together behind the scenes. When all three devices (the display plus the two sources) are connected to Gefen 2x1 HDTV Switcher (EXT-HDTV-241) and powered on, you simply select which source you want to view on the display using the Switcher, the IR remote that comes with it, or any universal remote you program to work with the Switcher.

The HDTV Switcher is HDCP compliant.

High Definition Television Defined

HDTV (high definition television) is a rapidly emerging video standard that transmits large amounts of visual data (resolutions up to 1920 x 1200 and 1080P) using DVI (Digital Video Interface) connectors, resulting is crisp, highly defined visuals that resemble movies shot on 35mm film. Since 2000, DVD players, computers, televisions and monitors have been equipped with the 24-pin DVI connection ports. DVI is the current transmitter of choice for HDTV because it is a purely digital interface that retains the integrity of the video signal through any transmission - even when sent over long lengths of cable. With DVI, there is no digital-to-analog or analog-to-digital conversion process that needs to take place before, during or after transmission. This streamlined, straightforward process makes DVI the current preferred interface for HDTV.

How it Works

Simply connect your HDTV display to the Switcher's (EXT-HDTV-241) display output. Then connect both HDTV sources to the Switcher's inputs using the DVI cables that come with the Switcher. Once the sources, the Switcher and the display are all powered on and connected, you simply select which source you want to view.

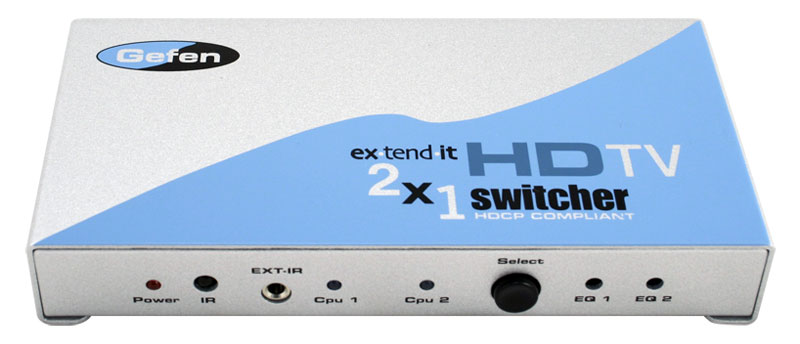

Gefen 2x1 HDTV Switcher (EXT-HDTV-241)

Gefen 2x1 HDTV Switcher

Features

  • Switch easily between any two HDTV sources

  • Maintains 480p, 720p, 1080i, and 1080p resolutions

  • Extends any HDTV compliant device by regenerating the HDTV signal

  • Maintains high resolution video - beautiful HDTV resolutions up to 1080p are easily achieved.

  • Discrete IR remote (included)

  • Supports VESA standard and HDTV resolutions

  • Supports DDWG standards for DVI monitors

  • HDCP compliant

  • Installs in minutes

Specifications
Video Amplifier Bandwidth1.65 GHZ
Input Video Signal1.2 volts p-p
Input DDC Signal5 volts p-p (TTL)
Single Link Range1080p/1920 x 1200
DVI ConnectorDVI-I 29 pin female (digital only)
Power Supply5V DC
Power Consumption5 watts (max)
Dimensions4"W x 1"H x 4"D



Package Includes:

2x1 HDTV Switcher
RMT-2IR Remote Control
Two 6-foot DVI Cables
5VDC Power Supply
User's Manual
