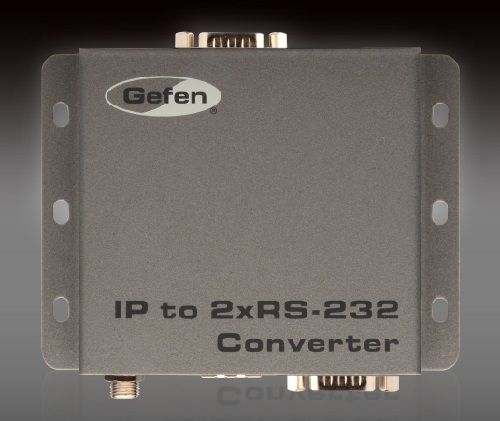

IP to 2xRS-232 Converter

The Gefen IP to dual RS-232 converter offers two distinct yet powerful applications:
1. IP Bridging: Allows control and communications with two RS-232-enabled devices over an IP network, using an IP-based Automation Control device. This creates tremendous system integration and control opportunities by allowing the use of RS-232 enabled legacy devices within an IP based control system. It can communicate with other IP-enabled devices over Telnet or UDP. Each of the two RS-232 ports are individually addressable and communications from the IP network can be routed to one, the other, or both RS-232 devices.
2. RS-232 Extension over CAT-5: Two units can be used as a Sender and Receiver pair to extend RS-232 over a single CAT-5, either connected directly or through a network switch. Regardless of your application, the IP to dual RS-232 converter features an intuitive web server interface that can be used for system set-up and firmware upgrades. It is also compatible with Gefen's Syner-GŠ software.

 1. IP Bridging: Using the included DB-9 cable, connect a device to be controlled to the RS-232 1 port. If planning to control a second RS-232 device, connect it using a DB-9 cable to RS-232 2 port of the converter. Using standard networking RJ45 terminated CAT-5 cable, connect the IP port of the Gefen IP Converter to your Local Area Network switch, or directly to an IP-enabled controller. 2. RS-232 Extension: Connect RS-232-enabled devices to two units of EXT-IP-2-RS2322 using the included DB-9 cables. Connect a CAT-5e or better cable, either directly between the two units, or through a Local Area Network switch. Each cable run can be up to 100 meters/330 feet. Connect the locking power supply(ies) to the unit(s) and to available electrical outlet(s). The power indicator LED(s) will glow bright blue. Set up each unit via its easy-to-use web server interface.

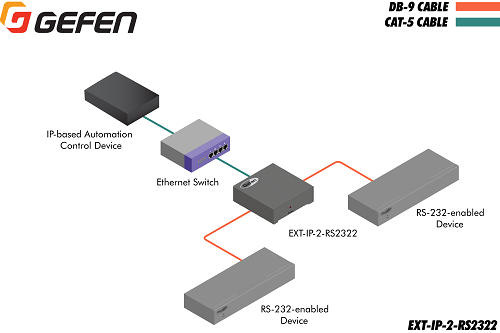

Diagram

Features:

• Allows IP Control of two RS-232-enabled devices
• Allows extension of RS-232 over one CAT-5e, up to 100m/330ft per cable run
• Supports Telnet and UDP protocols
• Each of the RS-232 devices can be addressed independently
• Configurable via web server interface and Gefen Syner-GŠ software
• Independently configurable RS-232 baud rate and line delay for each RS-232 port
• Field-upgradeable firmware via web server interface
• Locking power supply connector
• Surface mountable

Specifications:

• RS-232 Connectors: (2) DB-9, male
• IP Interface/Extension port: (1) RJ-45
• RS-232 Baud Rate: Adjustable via web server interface from 9600 to 115200 baud
• RS-232 Line Delay: Adjustable via web server interface: 0 to 10000 ms (10 s)
• IP Reset button: (1) tact-type, recessed
• Power Indicator: (1) LED, blue
• Power Supply: 5V DC, Locking
• Power Consumption: 1W (max.)
• Dimensions (W x H x D): 4.3"" x 1"" x 3.4"" (110mm x 26mm x 86mm)
• Shipping Weight: 1.8 lbs. (0.8 kg)
