Gefen USB 2.0 4-Port USB Hub
EXT-USB-144N
The Gefen EXT-USB-144N is a USB 2.0 4-Port Hub. Full support is provided for Hi-Speed USB 2.0 devices (at bandwidths of up to 480 Mbits/sec) as well as for legacy USB 1.1 backward support. The USB 2.0 4-Port Hub is compact and stylish, and blends easily with any computer equipment. The hardware is plug-and-play and therefore remains in configuration after a restart or a resume from hibernation or standby. The USB 2.0 4-Port Hub can operate in USB-powered mode or with an optional 5V external power adapter. The USB hub has protection from excess current with LED status indicators.

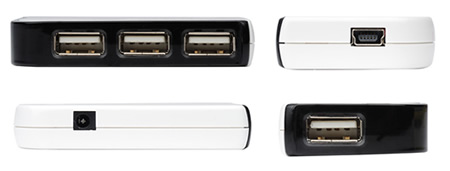

Gefen EXT-USB-144N USB Hub Side Views
Gefen EXT-USB-144N Features:
- Supports both USB 2.0 and USB 1.1 standards
- Supports Hi-Speed 480 Mbps data transfer rate
- Plug and Play for seamless interoperability
- Bus-Powered mode and external powered
- Hot-swap capability
- Connects up to a maximum of 127 USB devices through cascading multiple hubs
- Overcurrent detection and protection circuitry with LED status indicators
Package Includes:
- (1) USB 2.0 4-port Hub
- (1) USB "A" to mini-"B" Cable
- (1) 5V DC Power Supply

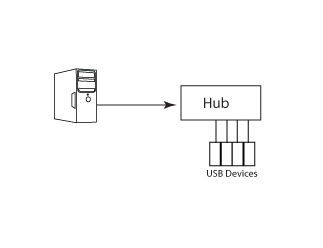

Gefen USB 2.0 4-Port Hub Wiring Diagram
Gefen EXT-USB-144N Specifications:
| Mechanical | |
| Height | 0.5 in. (12.7 mm.) |
| Width | 2.75 in. (69.85 mm.) |
| Depth | 1.5 in. (38.1 mm.) |
| Shipping Weight | 0.5 lb. (0.2 kg.) |
| Power | |
| Power Supply | 5V DC 2.5A (optional usage) |
| Power Consumption | 12.5W (max). |
| Power Output per USB Port | 500 mA max. (with optional use 5V DC adapter) |
| Connectors | |
| Input Connector | (1) mini-USB type "B" female, 4-pin |
| Output Connectors | (4) USB type "A" female, 4-pin |
| Standards | |
| Approved Agency | RoHS Compiant |
