Gefen 1:8 VGA CAT5 Distribution Receiver

EXT-VGA-CAT5-148R

$69.00

Discontinued
For upgrade or replacement options: Contact Us

The Gefen EXT-VGA-CAT5-148R is a VGA CAT5 Distribution Receiver which connects via CAT5 cable to the 1x8 VGA CAT5 Distribution Sender. The receiver can be connected up to 330 feet away from the Sender unit. One CAT-5 cable connects the sender and the receiver to each other, extending your video flawlessly.

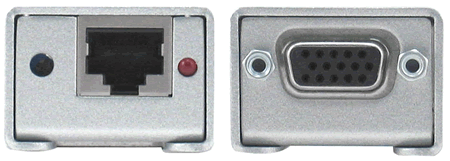

Gefen VGA Cat5 Disbribution Receiver Side Views
Gefen VGA Cat5 Disbribution Receiver Side Views

Gefen CAT5 Distribution Receiver Features:

  • Easily distribute one source to eight simultaneous displays
  • Extends video signals up to 330 feet over CAT-5e
  • Supports component video distribution
  • Maintains 1920 x 1200 resolution video
  • Allows eight monitors to be connected to the same video source at the same time

Gefen EXT-VGA-CAT5-148R Specifications:

Mechanical
Height 1 in. (2.54 cm.)
Width 1 in. (2.54 cm.)
Depth 4 in. (10 cm.)
Shipping Weight 3 lbs. (1 kg.)
Power
Supply 5 VDC (External)
Consumption 30 Watts (max.)
Connectors
Video In HD-15
Video Out HD-15
Link RJ-45
Input Signal
Video 1.2 volts p-p
DDC 5 volts p-p (TTL)
Frequency Range
Horizontal 15 - 70 KHz
Vertical 30 - 170 Hz
Video Amplifier Bandwidth 350 MHz
