Multi-Format 2x2 (4 out) 1080p HD Video Wall Processor

EZW2X2-S

$1,799.00$1,401.82
Save $397.18
FREE Shipping on orders over $100

The EZWall-Pro from SmartAVI is the perfect video wall solution for a wide variety of environments. With four single-link DVI outputs, users can create an attractive and dynamic 2x2 video wall display.

The new EZWall-Pro is capable of stretching any HD display over four screens, while maintaining any resolution up to 1920x1080 on each screen. This powerful new version stretches the video image in multiple ways, including Wall Mode and Clone Mode. Configurations stretch up to 2x2 screens, excellent for airports, classrooms, retail spaces, and restaurants.

Product Benefits and Features

  • Four Screen (2x2) Multi-Layout, Multi-Format Video Wall Controller
  • Four DVI Single-Link Outputs
  • Inputs: One HDMI, One VGA, One S-Video, One Composite, One Y/Pb/Pr
  • Supports Playing Media via USB port
  • Internal EDID Tables
  • 1920x1080 Output Resolution
  • No additional hardware or software required
  • Supports Control via Ethernet, IR and RS-232
  • HDCP Compliant

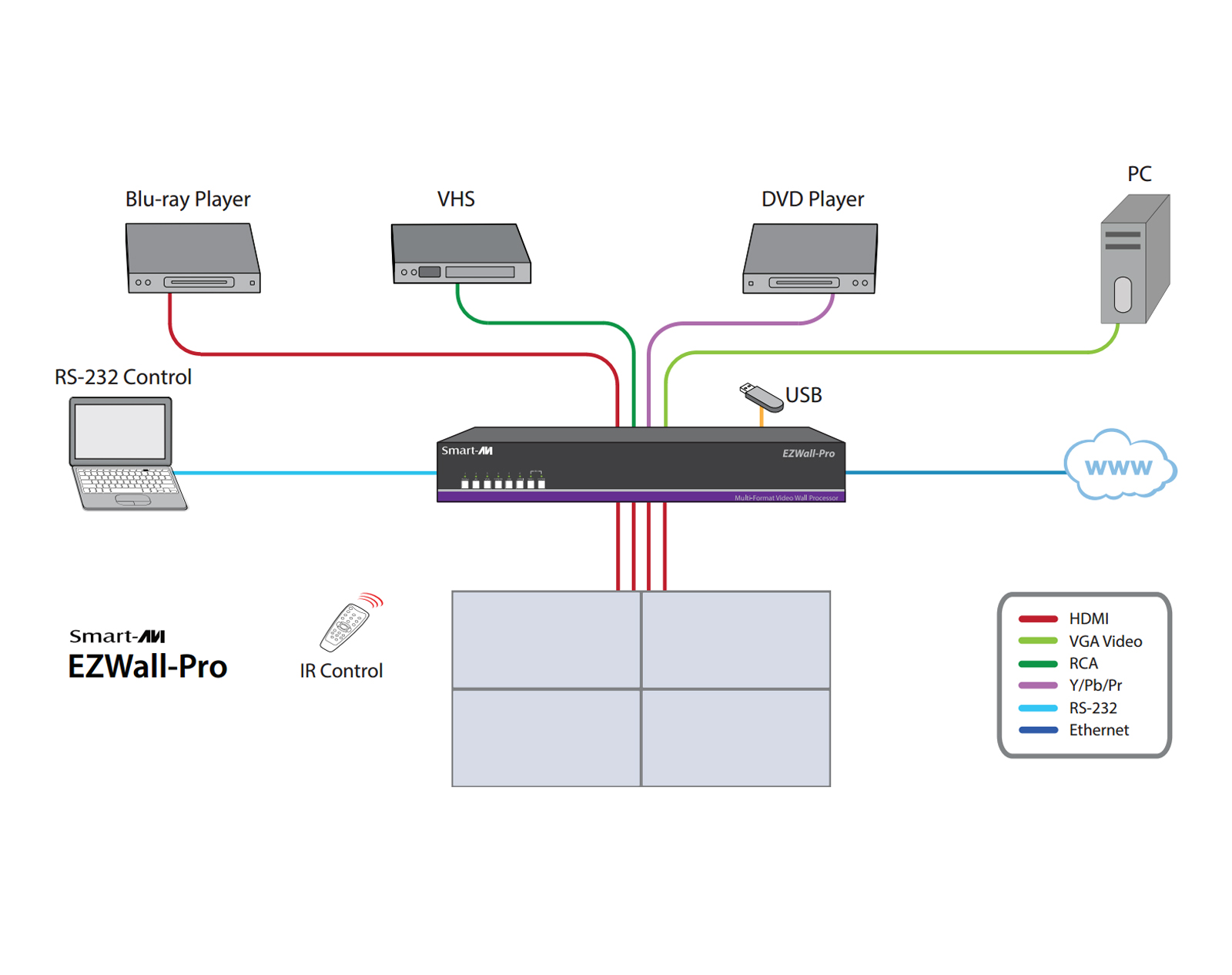

Product Diagram

Mechanical
Width17.125 in (435 mm.)
Height3.625 in. (92.08 mm.)
Depth7 in. (177.8 mm.)
Weight5 lbs. (2.27 kgs.)
Video
DVI FormatSingle-Link
Output ResolutionsUp to 1920 x 1080 @ 60Hz
Input ResolutionsUp to 1920 x 1080
Input Video Signal1.2 volts
Input DDC Signal5 volts
Outputs(4) DVI-D
Inputs(1) HDMI, (1) VGA, (1) Composite, (1) S-Video, (1) Y/Pb/Pr, (1) USB 2.0 Type B
Audio(1) 3.5 mm input, (1) 3.5 mm output
HDCP Compliance1.0/2.0
Controls
Front PanelTact Switches with OSD
RS-232DB9 Female
RemoteIR NEC 38 kHz
EthernetRJ-45
Other
Power110-220V Internal
Power Supply ApprovalsUL, CE, CSA, CEC, RoHS
USB Media Player
TypeUSB 2.0 Type B
Video FormatsMJPEG, MPEG-1, MPEG-2, MPEG-4, Vvid, DivX H.264
Max Resolution1920x1080 @ 30fps
Max Data Rate20 Mbps
Audio FormatsMP3, WMA, AAC, MP2, PCM, AC3
PhotosMax resolutions: JPEG - 15360x8640 BMP - 9600x6400 PNG - 9600x6400
OtherMax TXT resolution: 1200x800 Max ANSI/UNICODE GB/UTF8 file size: 1MB
UPC / EAN Barcode icon
UPC 813280017589
EAN 0813280017589
