1U 19" 1080p LCD console drawer with VGA and HDMI

F119

$1,712.00$1,579.00
Save $133.00
FREE Shipping on orders over $100

The F119 is a 1U 19" widescreen LCD console drawer with VGA and HDMI supporting 1080p resolutions. The keyboard is a 104 key notepad keyboard with touchpad or trackball.

Austin Hughes CyberView F117 Diagram

F-119 Features & Benefits:

  • 1U 19" widescreen LCD console drawer with VGA and HDMI
  • Support Full HD with 1080p resolution / 16.7M colors ( 8-bit )
  • New enhanced aesthetics with molded front handle
  • Short depth design of 460mm ( 18.1" ) only
  • 104-key keyboard with either touchpad or trackball
  • SUN Micro or MAC keyboard options available
  • Front USB port for device access ( USB Hub KVM only )
  • 2 post rack mounting available
  •  FCC, CE, CE / LVD, UKCA, REACH, RoHS3, WEEE Certified
"Ne" style keyboard included with F117

Optional Configurations (Contact us for availability)

  • Front USB hub port for device access
  • HDMI 1.3 video input
  • 3G / HD / SD-SDI Broadcast-grade input
  • Audio input & output
  • MAC or SUN Micro keyboard options available
  • DC Power: 12, 24, 48, 125 V DC
  • Multiple Integrated KVM Switch Options
  • 2-post rack mounting brackets ( ORB-2.1 )
  • Additional languages supported
  • Touchscreen: Resistive 1-pt, Projective 10-pt

F119 Package Contents

CyberView F117 Package Contents
  • (1) F119 Console Drawer
  • (1) CX-6A 6ft HDMI console cable (or optional CB-6A 6ft VGA console cable )
  • (1) Power cord
  • (8) M6 screw, cage nut & cup washer
  • (1) 2-year standard warranty ( upgradable up to 5 years )

F119 Resources

CyberView F117 DiagramF119 Brochure (PDF)
F119 Manual (PDF)
F119 Integrated KVM Manuals (Link)

F119 Specifications

Mechanical
Product Dimensions (H x W x D)
Single Console1.73 x 17.4 x 18.1 in.
(44 x 442 x 460 mm.)
*Some options extend chassis depth to 18.9 in. ( 480 mm. )
Console w/ KVM1.73 x 17.4 x 22.8 in.
(44 x 442 x 580 mm.)
Package Dimensions (H x W x D)
Single Console /
Console w/ KVM		5.5 x 23.2 x 31.8 in.
(140 x 590 x 808 mm.)
Net Weight
Single Console25.3 lbs. (11.5 kg)
Console w/ KVM28 lbs. (12.5 kg)
Gross Weight
Single Console35.2 lbs. (16 kg)
Console w/ KVM39.8 lbs. (18.1 kg)
Mounting Distance
Single Console18.5 ~ 27.6 inch
(470 ~ 700 mm)
Console w/ KVM18.5 ~ 31.5 inch
(470 ~ 800 mm)
Console Ports
Video InputVGA + HDMI single link
Video OptionHDMI 1.4 / HDCP 1.4
KB / MS USB Interface
VGA console 6ft cable (CB-6A)
--OR--
HDMI console 6ft cable (CX-6A)
Drawer end : DB-15 + USB type A x 2
Server end : DB-15 + USB type A x 2
Drawer end : HDMI + USB type A x 2
Server end : HDMI + USB type A x 2
LCD Screen
LCD panel size ( diagonal )18.5"
Backlight typeLED
Native resolution1920 x 1080
Brightness (cd/m2)350
Colors16.7 M, 8-bit
Contrast Ratio (typ)1000 : 1
Viewing angle ( L/R/U/D ) 89/89/89/89
Viewing angle (H x V) 160° x 140°
Response time ( ms )20
Dot pitch ( mm )0.213
Display area ( mm )408.98H x 230.04V
Surface treatmentAnti-glare, Hard-coating
Surface hardness3H
MTBF (hrs)50,000
Audio Option
Speaker2x 2W (Dual Stereo)
Input Connector3.5mm stereo jack
Input Impedance / Power level 30Ω / 750mV
Output Connector3.5mm stereo jack
Output Impedance / Power level 30Ω / 2.8V
Power
Power InputAuto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption
(Single Console / with KVM)
Screen onMax. 14W / Max. 45W
Power saving modeMax. 2W / Max. 34W
Power button onMax. 1W / Nil
Environmental
Operating Temperature-20 to 70°C Degree
Storage Temperature-20 to 70°C Degree
Operating Humidity10~90%, non-condensing
Relative Humidity5~90%, non-condensing
Operating Altitude16,000 ft
Non-operating Altitude40,000 ft
Shock 10G acceleration (11ms duration)
Vibration10~300Hz 0.5G RMS random vibration
Regulatory Compliance
EMCFCC, CE
SafetyCE / LVD & UKCA certified
EnvironmentRoHS3 /WEEE & REACH compliant

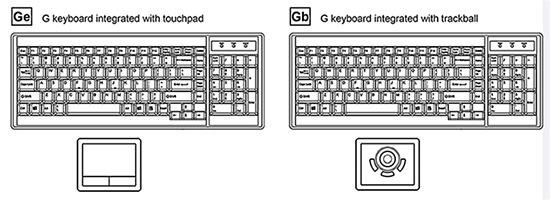

The F119 series is also known as the F-119. The F119e comes with an integrated touchpad, while the F119b comes with an integrated trackball.


F119 models with Integrated KVM Switch (Contact us for pricing / availability)

Austin Hughes CyberView F117 with Matrix CAT6 KVM
Matrix CAT6 KVM		Local UserExtendedIP8-Port16-Port32-Port
111-F119-MUIP1613F119-MUIP3213
121-F119-MUIP1614F119-MUIP3214
112-F119-MUIP1624F119-MUIP3224
110-F119-MU1602F119-MU3202
120-F119-MU1603F119-MU3203
130-F119-MU1604F119-MU3204

Austin Hughes CyberView F117 with Combo CAT6 KVM
CAT6 KVM		Local UserExtendedIP8-Port16-Port32-Port
101F119-UIP802F119-UIP1602F119-UIP3202
110F119-U802F119-U1602F119-U3202
100F119-U801F119-U1601F119-U3201

Austin Hughes CyberView F117 with HDMI KVM
HDMI KVM		Local UserExtendedIP12-Port
100F119-1201D

Austin Hughes CyberView F117 with Matrix VGA DB-15 KVM
Matrix VGA DB-15 KVM		Local UserExtendedIP8-Port16-Port32-Port
111F119-MIP813F119-MIP1613-
121F119-MIP814F119-MIP1614-
112F119-MIP824F119-MIP1624-
110F119-M802F119-M1602-
120F119-M803F119-M1603-
130F119-M804F119-M1604-

Austin Hughes CyberView F117 with VGA DB-15 KVM
VGA DB-15 KVM		Local UserExtendedIP8-Port16-Port32-Port
101F119-IP802F119-IP1602-
110F119-802F119-1602-
100F119-S801F119-S1601-

Austin Hughes CyberView F117 with USB HUb VGA DB-15 KVM
VGA DB-15 KVM with USB Hub		Local UserExtendedIP8-Port16-Port32-Port
101F119-IP802HF119-IP1602H-
110F119-802HF119-1602H-
100F119-801HF119-1601H-

Austin Hughes CyberView F117 with PS2 DB-15 KVM
VGA PS/2 KVM		Local UserExtendedIP8-Port16-Port32-Port
100F119-801F119-1601-
