Belkin OmniView KVM-over-IP Manager with Virtual Media

F1DE101H

$749.00

Discontinued
Recommended replacement: Adder IPEPS
Alternative options: Contact Us

The Belkin OmniView F1DE101H is a KVM-over-IP Manager with Virtual Media device which provides businesses with an easy way to add KVM-over-IP technology to existing KVM and server configurations. When connected to a KVM switch, it allows network administrators to remotely and securely access and control their servers' from anywhere, at anytime. This round-the-clock remote access lets you troubleshoot servers faster and more efficiently, dramatically reducing server downtime and service costs. With their compact design, the IP Manager position on desktops or mount to server racks, and take up 0U space.

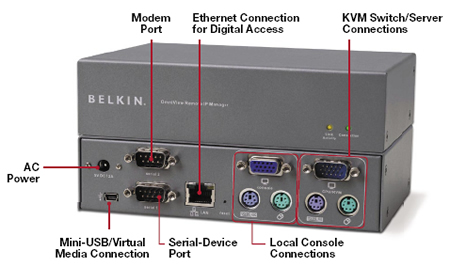

Belkin F1DE101H Back View
Belkin F1DE101H Back View

Belkin F1DE101H Features:

  • Digital Performance - Refers to color depth, synchronization capability, and responsiveness
  • Video Viewer -  Type of viewer interface, Java
  • Digital User - Provides access for 1 remote user
  • Web-Based User Interface - Lets you access servers over a TCP/IP connection using a standard web browser
  • BIOS-Level Access - Provides remote access to server's BIOS to make changes and reboot servers
  • User-Friendly Interface - Provides quick setup and easy access to servers
  • Serial-Device Support - Lets you control power distribution units to perform hard reboots remotely
  • Digital Collaboration - Enables up to 25 users to simultaneously view digital video for collaborative troubleshooting
  • No Software Required - Simplifies deployment and installation, and eliminates costly licensing fees
  • Virtual Media* - Allows you to transfer files and images between local and remote computers
  • Multi-Platform Support - works with any KVM switch or computer with PS/2 or USB** console connection
  • Desktop or 0U Installation - positions easily on your desk or mounts to the back of your rack
  • Flash-Upgradeable Firmware - ensures compatibility with the latest firmware
  • Event Log and Notification - Allows you to monitor and receive email notification of user activity

*Optional virtual-media feature requires software installation (included with product).
**USB connection requires a PS/2-to-USB adapter (part number F5U119vE1)

Package Includes:

  • OmniView KVM-over-IP Manager with Virtual Media
  • PS/2 Cable Kit
  • VGA Cable
  • DB9 Serial Cable
  • Mini-USB Cable
  • 5V DC, 2A Power Adapter
  • Rack-Mount Brackets with Screws
  • Software Installation CD
  • User Manual
  • Quick Installation Guide

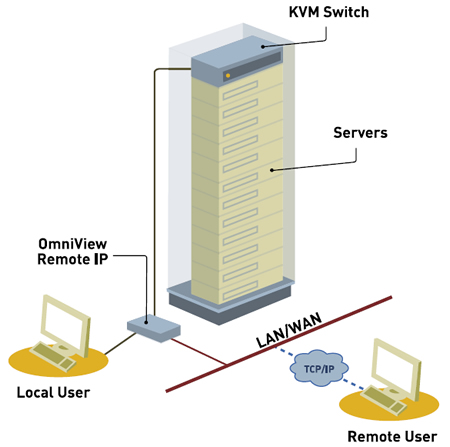

Belkin OmniView KVM-Over-IP Manager Application Diagram
Belkin OmniView KVM-Over-IP Manager Application Diagram

Belkin F1DE101H Specifications:

Mechanical
Height 1.75 in. (44.5 mm.)
Width 6.75 in. (171 mm.)
Depth 4.5 in. (114 mm.)
Weight 1.65 lbs. (0.75 kg.)
Enclosure Metal
Supported Hardware
Monitors VGA
Keyboard/Mouse PS/2
Video Resolution Local analog port: 2048x1536@85Hz
|Digital port: 1600x1200@75Hz
Operating Systems Windows¨, XP, Server 2003; DOS;
Linux¨ 8.x and above; Sunª;
Novell¨ 5.x; Mac OS¨ X and above;
Solarisª 8.x and above
Network/Security
Ethernet Port RJ45 (10/100Base-T connection)
Typical Bandwidth 0.29Mbps***
Browsers Supported Microsoft¨ Internet Explorer 6.0 and above,
Netscape¨ Navigator¨ 7.0
Encryption Modes 256-bit SSL, 128-bit SSL, AES, DES, 3DES
Authentication Support LDAP, RADIUS, AD
Protocol Support SNMP v1, IPv4
Ports
Local Console HDDB15 female (VGA), miniDIN6 (PS/2)
CPU/KVM HDDB15 male (VGA), miniDIN6 (PS/2)
CPU USB/Virtual Media Mini-USB
Serial Device DB9 male
Modem DB9 male
Flash Upgrade RJ11
No. of Users Supported 1 digital or 1 local

***Typical bandwidth is defined as typical "non-intensive" administrative use at 16-bit color, 1024x768 resolution.
****The IP Device may be connected to any KVM switch or individual server with PS/2 keyboard and mouse console ports.
