Belkin Flip, 2 Port PS/2 KVM Switch
F1DF102P
The Belkin Flip F1DF102P is a 2 port PS/2 KVM switch which allows you to connect two computers to one monitor and keyboard and "flip" between the computers using a simply touch button remote. Just place the remote anywhere on your desk and press to flip your monitor from one computer to the next. This KVM switch is great for connecting your old and new desktop computers, giving you instant access to files, programs, and games on both computers.

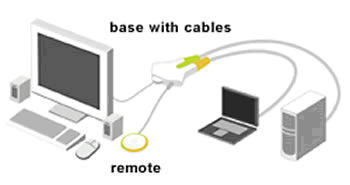

Belkin Flip KVM Switch Diagram
Belkin Flip KVM Switch Benefits:
- Shares one monitor, keyboard, and mouse between computers
- Connects instantly to notebook computers
- Features a 2-color LED that indicates which computer Flip is accessing
- Includes 2 cables to connect computers
- Installs in 3 easy steps with no software required
Belkin F1DF102P Package Includes:
- Remote
- Base with cables
- Optional fastener strip
- User guide
Belkin F1DF102P Specifications:
| Mechanical | Base Unit | Remote Unit |
| Height | 1 in. (25 mm.) | 0.5 in. (13 mm.) |
| Width | 4 in. (102 mm.) | 1.5 in. (38 mm.) |
| Depth | 3.75 in. (95 mm.) | 1.5 in. (38 mm.) |
| Weight | 13 oz. (368.5 g.) | 1 oz. (28.35 g.) |
| Cable Length | 2 ft., 6 ft. (0.6 m., 1.8 m.) | 6 ft. (1.8 m.) |
| Connections/Inupts | ||
| Monitor Connection | VGA | |
| Keyboard Input | PS/2 | |
| Mouse Input | PS/2 | |
| No. of Computers Supported | 2 | |
| Monitors Supported | VGA and DVI-I (with VGA adapter) | |
| Max. Resolutions Supported | Up to 2048x1536@65Hz | |
| Enclosure | Plastic | |
| System Requirements | Windows 2000, XP, 2003 Linux | |
