Belkin F1DH102L 2-port Dual Monitor VGA SOHO KVM Switch with Audio



For upgrade or replacement options: Contact Us

The Belkin F1DH102L SOHO Dual Monitor Desktop KVM Switch lets you share up to two monitors, keyboard, and mouse with up to two computers, saving space on your desk and reducing equipment clutter. The sleek, new design incorporates a built-in USB 2.0 2-port hub with one of the ports conveniently located on the front. This is perfect for connecting an MP3 player, printer, scanner, or any of your USB devices to the KVM Switch while allowing your connected computers to access them. Sensitive push buttons on the front allow for easy switching, and independent audio-switching means you can play music from one computer while accessing files from another.

Belkin F1DH102L Features:

  • Switches easily between Mac computers and PCs
  • Front-panel buttons with NEW LED indicator lights allow you access audio and video content from multiple computers simultaneously
  • Requires no software for installation
  • Now includes a built-in USB 2.0 hub for connecting your peripherals
  • Included cables are color-coded to match the front buttons and back panel for trouble-free installation
  • Now supports hot-key functionality for optional switching

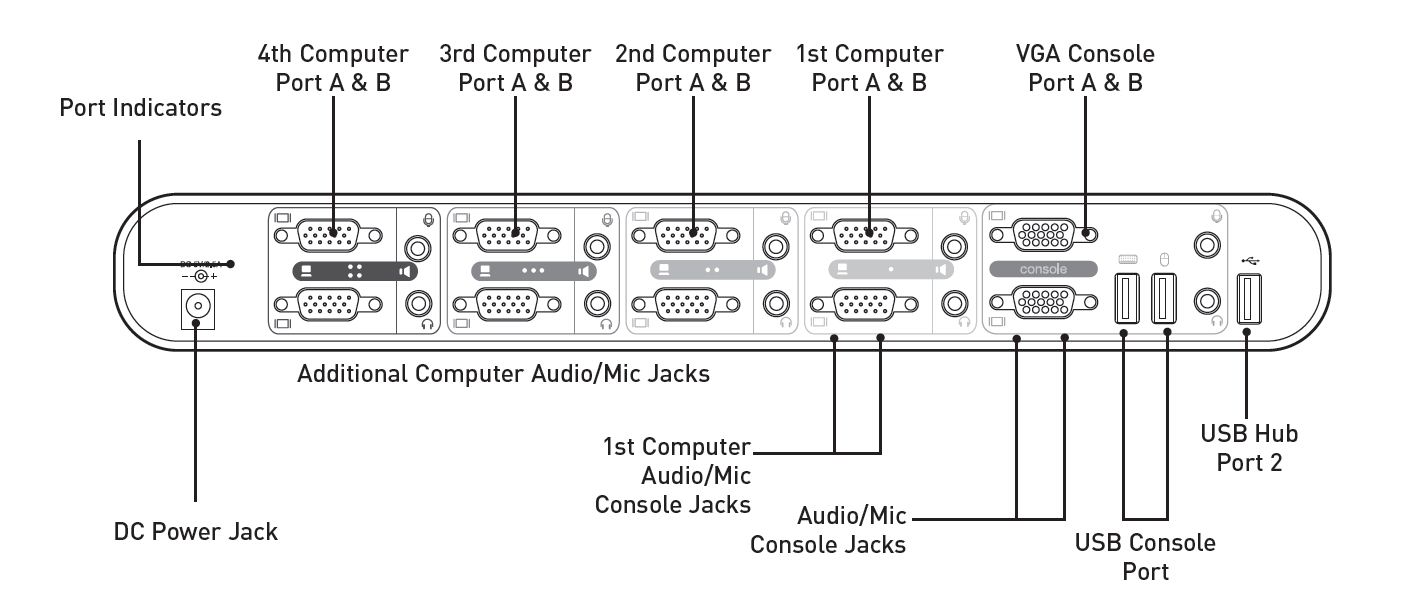

Belkin F1DH102L Backend
Belkin F1DH102L Back View

Belkin F1DH102L Requirements:

  • Console
    • A VGA, SVGA, or Multisync capable monitor
    • USB keyboard and mouse
    • Microphone and speakers (optional)
  • Computers
    • A VGA, SVGA or Multisync port
    • Type A USB port
    • Audio ports (optional)

Belkin F1DH102L Package Content:

  • 1 F1DH102L 2-port OmniView SOHO KVM Switch with Audio
  • 2 6 ft. (1.8m) SOHO USB Cable Kits
  • 1 9V, 1.1A DC Power Adapter
  • 1 User Manual
  • 1 Quick Start Guide

Belkin F1DH102L Specifications:

Height 5.5 in. (13.97 cm.)
Width 5.5 in. (13.97 cm.)
Depth12.7 in. (31.75 cm.)
Weight1.48 lbs. (.67 kg.)
Operating Temperature32-104 F (0-40 C)
Storage Temperature

-4-140 F (-20-60 C)


0-80% RH, Non-condensing

On Line/Selected4
Port SelectionFront Panel Switches; Hotkey
Video Resolution2048 x 1536; 85Hz
Power ConsumptionDC 5V, 1.25W
Power Adapter (optional)1 x 9V, 1.1A DC Adapter
Scan Interval5 seconds default (1-99 secs)
Supported Hardware
EmulationUSB keyboard/mouse
Keyboard, Mouse & Monitor2 x USB Type A
2 x HDB-15
Audio1 x Mini Stereo Jack (Green)
1 x Mini Stereo Jack (Pink)
Computer Connectors4 x HDB-15
2 x USB Type A
Power Jack1 x DC 5V Jack
USB Hub2 x USB Type A
Approved Agency RoHS
Question: wanting to see if this is windows 7 compatible
Answer: Thank you for your inquiry. According to the manufacturer this device will support Windows7.

Other supported Operating systems include:
- Mac OS X and above
- Windows 2000, XP, Windows Vista, 2003, 7
- Linux
- Novell

Question: I am currently running 2 screens with my original computer and have also an upgraded new computer (2 Computers). I would like to purchase this product so that I could continue using both computers with dual screens by just pressing a switch, will this product allow me to do this?
Answer: Thank you for your inquiry,

Yes sir, the Belkin F1DH102L supports two dual monitor VGA computers from one user console (keyboard, mouse, and two monitors). The F1DH102L also includes a switchable USB port that you can use to plug a USB device to share between your computers.

Alternatively you can find all of our Dual Monitor VGA KVMs here, and all of our Dual Monitor KVMs here with various video inputs. You can also always use our KVM Finder to filter through our KVM switches.

If you would like a reccomendation based on your application or have any questions, please feel free to contact you KVM Switches Online sales representative directly.
